MT10/10-CB2W-A
45,13 €
Ruland Two-Way Base Connector, Thru Hole 10mm, Base Diameter 38mm, Aluminum
Due to Microsoft's discontinuation of updates, including security, certain functionality such as checkout and CAD may not work for you. We recommend using Google Chrome, Microsoft Edge, Firefox, or Safari to ensure full functionality.Thank you - the Ruland team
PRODUKTSPEZIFIKATIONEN

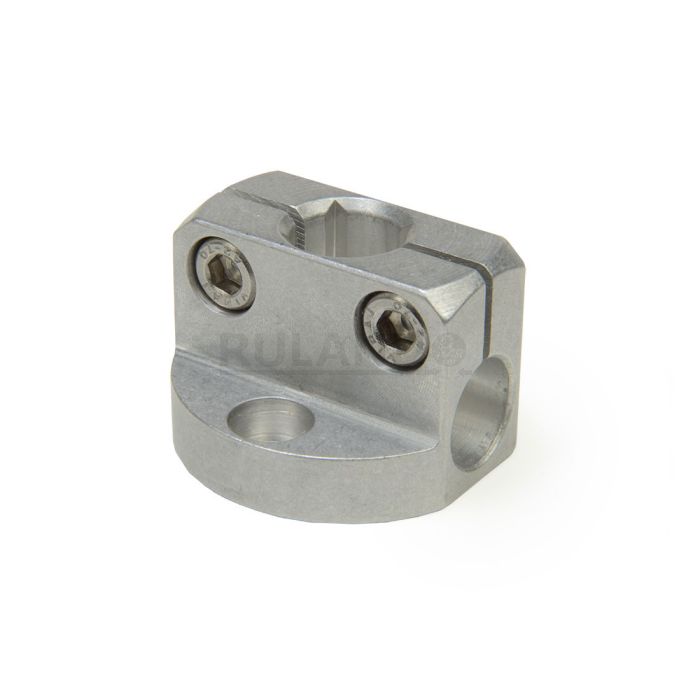

Ruland MT10/10-CB2W-A is a two-way base connector with a 38mm base diameter, 10mm round thru holes, an 8mm square thru hole, M5 clamp screws, and an overall length of 24mm. It is designed to fit with Ruland tubes that begin with MT10. MT10/10-CB2W-A is aluminum and screws are 304 stainless steel for use in most industrial applications. This two-way base connector is typically used as a base in support structures for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. It can be permanently installed on extruded aluminum frames, sheet metal, and other surfaces using M5 hardware or the user can opt for portability by using MAGNET-43-27 magnetic base. MT10/10-CB2W-A can have MT10 round and square tubes installed vertically and/or horizontally giving system designers a high degree of flexibility to customize the base to the needs of applications throughout the equipment. MT10:12-ALK-M5-20 adjustable clamping handles can be used in place of standard hardware if rapid fine repositioning of the tube is required. MT10/10-CB2W-A is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.
PRODUKTSPEZIFIKATIONEN
| Abmessungen | |||
|---|---|---|---|
|
Durchgangsbohrung 1 B1 |
10 mm |
Durchmesser Bohrung 2 B2 |
10 mm |
|
Bohrungstoleranz |
+0,09/-0 mm |
Durchgangsbohrung 2 |
+0,09/-0 mm |
|
Klemmbreite WC |
16 mm |
Klemmenlänge L3 |
35 mm |
|
Fuß durchmesser D1 |
38 mm |
Vierkantbohrung S |
8 mm |
|
Gesamthöhe H1 |
24 mm |
Mitte zu Mitte LC |
27 mm |
|
Kante zur Mitte L2 |
8 mm |
Gegenbohrung CH |
M5 |
|
Gegenbohrung zur Basis CB |
2,5 mm |
||
| Befestigungsschraube | |||
|
Klemmschraube CL |
M5 |
||
| zusätzliche Information | |||
|
Gewicht (kg) |
0.036000 |
Materialspezifikation |
Aluminium |
|
Hersteller |
JW Winco/ Otto Ganter |
UPC |
634529232132 |
|
Herkunftsland |
Deutschland |
Tariff Code |
7609.00.0000 |
|
UNSPC |
31162908 |
||
| Produkthinweise | |||
|
Anmerkung 1 |
Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen. |
Prop 65 |
|
