MNTBRKT-HL-18-16-SS
7,51 €

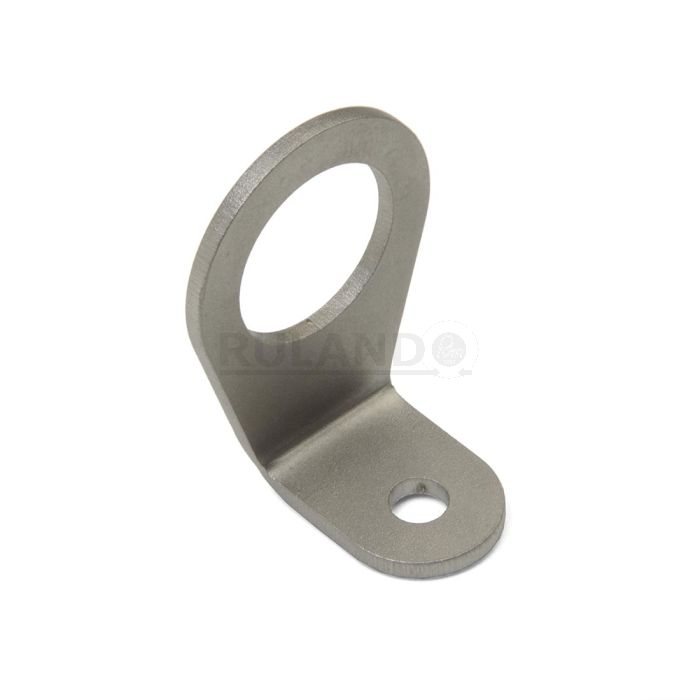

Ruland Sensor Bracket, Thru Hole 18mm, W 16mm, Stainless Steel
Due to Microsoft's discontinuation of updates, including security, certain functionality such as checkout and CAD may not work for you. We recommend using Google Chrome, Microsoft Edge, Firefox, or Safari to ensure full functionality.Thank you - the Ruland team
PRODUKTSPEZIFIKATIONEN
Ruland MNTBRKT-HL-18-16-SS is a mounting bracket with a 18mm thru hole, 16mm bracket width, and M5 tapped hole. It is designed to fit with Ruland bracket clamps. MNTBRKT-HL-18-16-SS is made of stainless steel for corrosion resistance and durability in a variety of industrial environments. It is primarily used to mount 18mm sensors in a variety of applications industries including packaging, printing, food processing, and medical. MNTBRKT-HL-18-16-SS is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.
PRODUKTSPEZIFIKATIONEN
| Abmessungen | |||
|---|---|---|---|
|
Durchmesser Bohrung B |
18 mm |
Befestigungsschraube SC |
M5 |
|
Kante zur Mitte L2 |
24 mm |
Kante zu Schraube L3 |
15 mm |
|
Halterungsbreite W |
16 mm |
Dicke T |
2 mm |
|
Halterungslänge L1 |
23 mm |
||
| zusätzliche Information | |||
|
Gewicht (kg) |
0.012500 |
Materialspezifikation |
Edelstahl |
|
Hersteller |
JW Winco/ Otto Ganter |
UPC |
634529229408 |
|
Herkunftsland |
Deutschland |
Tariff Code |
7609.00.0000 |
|
UNSPC |
31162908 |
||
| Produkthinweise | |||
|
Anmerkung 1 |
Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen. |
Prop 65 |
|
WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to Verwandte Produkte
