    main product photo

    FHT-MCL-10E-AN

    47,71 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 47,71 €
    20 43,37 €
    100 32,38 €
    250 19,44 €
    500 Angebot anfordern
    In Production Lead Time: 2 Weeks or Less

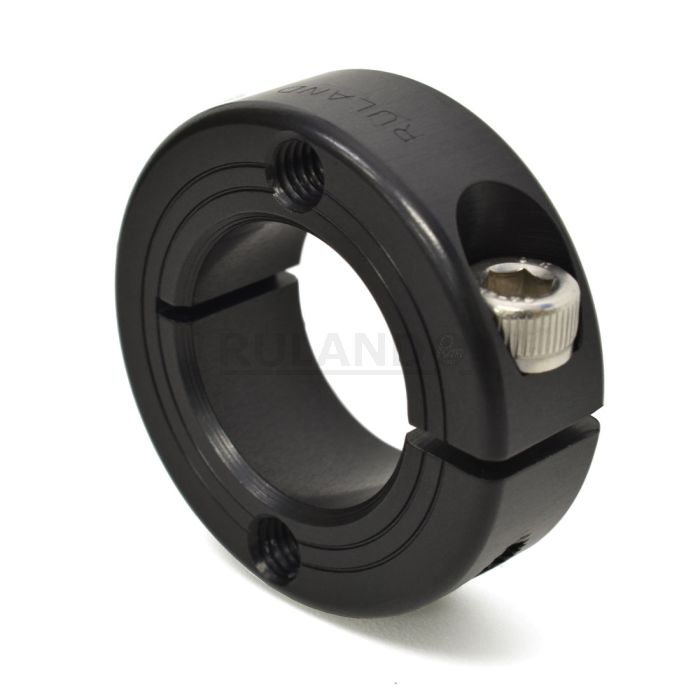

    Ruland FHT-MCL-10E-AN, 5/8" Face Mount Shaft Collar with Tapped Hole, Anodized Aluminum, One-Piece Clamp Style, 34mm OD, 13mm Width

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland FHT-MCL-10E-AN is a one-piece shaft collar with a 0.6250" bore, 34mm OD, and 13mm width. FHT-MCL-10E-AN has tapped holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Tapped holes allow for a secure connection between the shaft collar and mated component. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. FHT-MCL-10E-AN is stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. FHT-MCL-10E-AN is machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses high grade 2024 aluminum with an anodized finish for increased screw seating torque and added corrosion resistance. It is RoHS3 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    0,6250 zoll

    Bohrungstoleranz

    +0,0020 zoll / +0,0005 zoll

    Außendurchmesser (OD)

    34 mm

    Platzbedarf C MAX

    39,3 mm

    Breite (W)

    13 mm

    Breitentoleranz

    +0,076 mm / -0,254 mm

    Hole to Center

    12,47 mm

    Hole to Hole

    24,94 mm

    Gewindebohrung für Befestigung

    M5

    Empfohlene Wellentoleranz

    +0,0000 zoll / -0,0005 zoll
    Befestigungsschraube

    Innensechskantschraube

    M5

    Schraubenwerkstoff

    18-8 Cr-Ni Rostfreier Stahl

    Größe Sechskantschlüssel

    4,0 mm

    Schraubenoberfläche

    Glänzend Poliert

    Anzugsmoment

    5,4 Nm

    Schraubenposition (R)

    12,50 mm

    Anzahl der Schrauben

    je 1
    Recommended Installation Tools

    Recommended Torque Wrench

    TW:BT-1R-1/4-48.0

    Recommended Hex Key

    Metric Hex Keys
    zusätzliche Information

    Materialspezifikation

    2024-T351 Aluminium Stangenmaterial

    Temperaturbereich

    -40°C bis 93°C

    Spezifikation Oberflächenbehandlung

    Schwarz eloxiert nach MIL-A-8625 Type II, Class 2 und ASTM B580 Type B

    Hersteller

    Ruland Manufacturing

    Herkunftsland

    USA

    Gewicht (kg)

    0.055370

    UPC

    63452937747

    Tariff Code

    8483.60.8000

    UNSPC

    31162811
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
