LF30-CL-M5:15-ZS

22,03 €
Menge Preis (USD)
1 22,03 €
250 20,27 €
500 18,35 €
1000 16,52 €
1500 Angebot anfordern
Auf Lager
Registered users receive a 5% discount

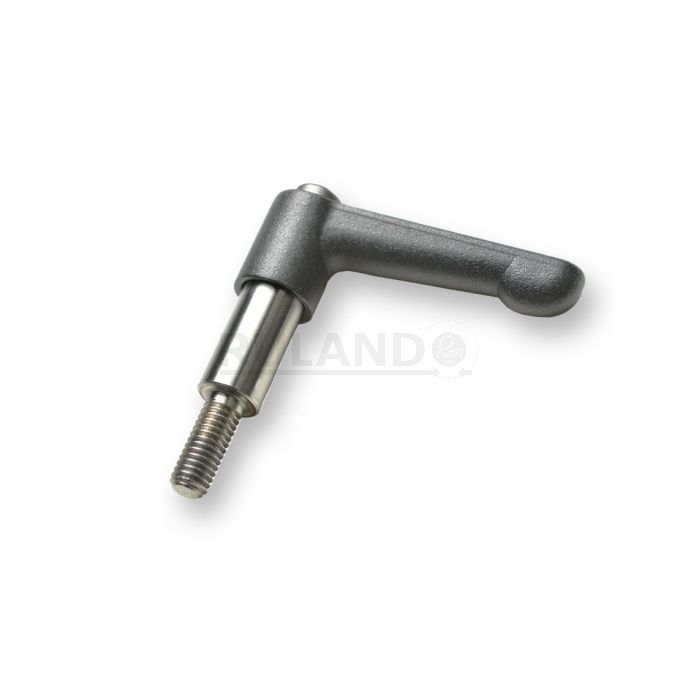

Ruland Flat Adjustable Lever, Lever Length 30mm, Stud Thread M5, Stud Length 14mm, Sleeve Length 15mm, Zinc Lever, Stainless Steel Inserts

PRODUKTSPEZIFIKATIONEN

Ruland LF30-CL-M5:15-ZS is an adjustable clamping lever with a 30mm long flat handle, M5 threaded stud, 14mm stud length, 15mm sleeve, and 35mm overall height. The threaded stud is designed to replace standard M5x15 hardware in Ruland one- and two-piece shaft collars. Once installed on the shaft collar, the lever is turned until the user reaches their desired torque. It does not require any tools to install, making it ideal for applications that require frequent setup changes and adjustments. LF30-CL-M5:15-ZS is black to seamlessly integrate with the aesthetics of most equipment. It is manufactured by Otto Ganter, stocked by Ruland, and RoHS3 and REACH compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Gewinde (TH)

M5

Bolzenlänge LS

14 mm

Hebellänge L1

30 mm

Gesamthöhe H1

35 mm

Nabenhöhe H2

33 mm

Nabendurchmesser DH

13 mm

Gewindesteigung

0,8 mm

Ärmel Länge L2

15 mm

Hülsendurchmesser D1

8,7 mm

zusätzliche Information

Griffmaterial

Zinc

Grifffarbe

schwarz

Material für Einsatz und Schraube

303 Stainless Steel

Gewicht (kg)

0.032000

Hersteller

JW Winco/ Otto Ganter

UPC

634529238417

Herkunftsland

Deutschland

Tariff Code

8487.90.0080

UNSPC

31162807

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

Prop 65

WARNING This product can expose you to chemicals including Soots, Benzene, Lead, and Nickel (metallic), known to the State of California to cause cancer, and Lead and Benzene known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
