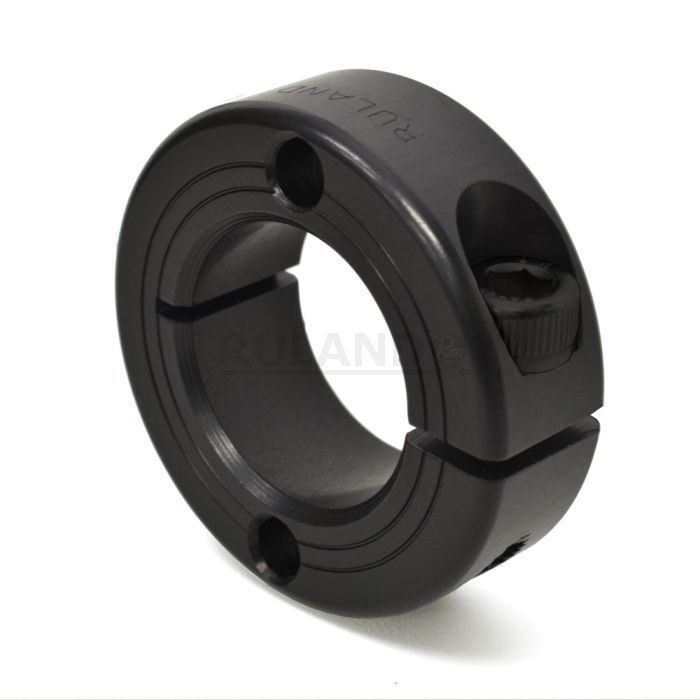

    main product photo

    FHD-MCL-10E-F

    19,24 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 19,24 €
    20 17,49 €
    100 13,05 €
    250 7,84 €
    500 Angebot anfordern
    In Production Lead Time: 1 Week or Less
    Ruland FHD-MCL-10E-F, 5/8" Face Mount Shaft Collar with Drilled Hole, Black Oxide Steel, One-Piece Clamp Style, 34mm OD, 13mm Width

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland FHD-MCL-10E-F is a one-piece shaft collar with a 0.6250" bore, 34mm OD, and 13mm width. FHD-MCL-10E-F has drilled holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Drilled holes give the user flexibility to choose inch or metric mounting hardware that best suits the application. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. FHD-MCL-10E-F is stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. FHD-MCL-10E-F is machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses 1215 lead-free steel with a proprietary black oxide finish that produces a fine glossy finish while increasing holding power and resisting corrosion. It is RoHS3 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    0,6250 zoll

    Bohrungstoleranz

    +0,0020 zoll / +0,0005 zoll

    Außendurchmesser (OD)

    34 mm

    Platzbedarf C MAX

    39,3 mm

    Breite (W)

    13 mm

    Breitentoleranz

    +0,076 mm / -0,254 mm

    Hole to Center

    12,47 mm

    Hole to Hole

    24,94 mm

    Hole Diameter

    5,31 mm

    Empfohlene Wellentoleranz

    +0,0000 zoll / -0,0005 zoll
    Befestigungsschraube

    Innensechskantschraube

    M5

    Schraubenwerkstoff

    Legierter Stahl

    Größe Sechskantschlüssel

    4,0 mm

    Schraubenoberfläche

    Brüniert

    Anzugsmoment

    9,5 Nm

    Schraubenposition (R)

    12,50 mm

    Anzahl der Schrauben

    je 1
    Recommended Installation Tools

    Recommended Torque Wrench

    TW:BT-4C-3/8-86

    Recommended Hex Key

    Metric Hex Keys
    zusätzliche Information

    Materialspezifikation

    1215 Automatenstahl Stangenmaterial

    Temperaturbereich

    -40°C bis 176°C

    Spezifikation Oberflächenbehandlung

    Heißbrünierung, Imprägnierung mit Naphtenöl und zentrifugal getrocknet

    Hersteller

    Ruland Manufacturing

    Herkunftsland

    USA

    Gewicht (kg)

    0.138478

    UPC

    63452937613

    Tariff Code

    8483.60.8000

    UNSPC

    31162811
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
