MT15-SQ-300-A, No Scale

$ 30,91
Cantidad Price (USD)
1 $ 30,91
10 $ 28,44
25 $ 25,75
50 $ 23,18
100 Request Quote
Disponible
Registered users receive a 5% discount
Sólo queda 5

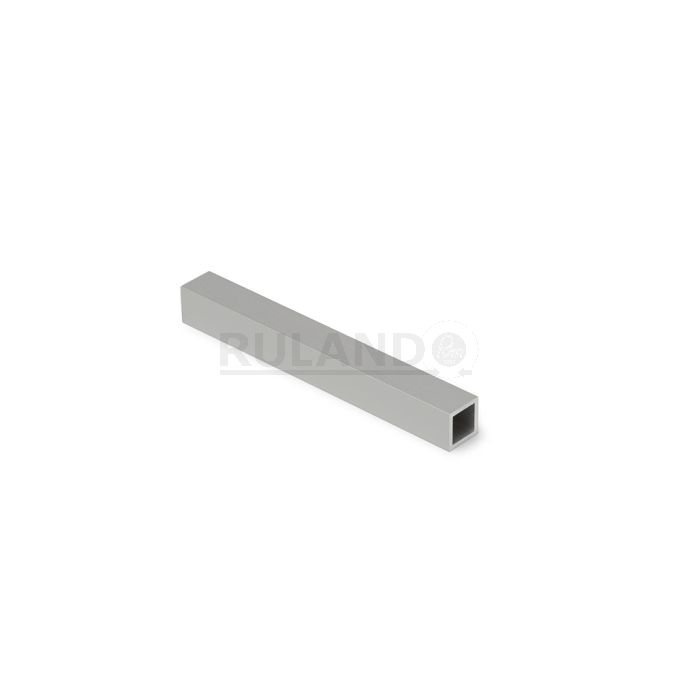

Ruland Hollow Square Tube, OD 12mm, ID 9mm, L 300mm, Aluminum

PRODUCT SPECIFICATIONS

Ruland MT15-SQ-300-A is a hollow square tube with a 12mm outer diameter, 9mm inner diameter, and 300mm overall length. It is designed to fit with Ruland clamp connectors, swivel components, and mounting bases that begin with MT15. MT15-SQ-300-A is made of aluminum for reduced weight when compared to stainless steel round tubes. It is used to support components for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. MT15-SQ-300-A is a more cost effective option than equivalently sized stainless steel tubes. This tube is hollow for reduced weight and to help protect wires from components such as cords and screens from being damaged. When combined with MT15-SQTUBECAP-P the user can drill in the tube cap to reduce cords exposure to the operating environment for safety. MT15-SQ-300-A is precision ground to help reduce surface imperfections. It is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUCT SPECIFICATIONS

Dimensions

Diámetro interior cuadrado ID

9 mm

Diámetro exterior cuadrado OD

12 mm

OG Overall Length

300 mm

Embona con abrazaderas

MT15

Additional Information

peso

0.048900

Especificación de material

Aluminum

Fabricante

JW Winco/ Otto Ganter

UPC

634529231197

País de origen

Alemania

Tariff Code

7609.00.0000

UNSPC

31162908

MT15-SQ-300-A, No Scale
