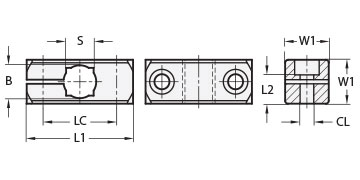

Dimensions | |||
---|---|---|---|
Diámetro del agujero B |
15 mm |
Tolerancia del agujero |
+0,11/-0 mm |
Agujero cuadrado S |
12 mm |
De centro a centro LC |
32 mm |
Anchura y altura W1 |
20 mm |
OG Overall Length |
45 mm |
Tornillo de montaje SC |
M6 |
||
Fastening Hardware | |||
Klemmschraube CL |
M6 |
Longitud del tornillo L2 |
14 mm |
Additional Information | |||
peso |
0.031000 |
Especificación de material |
Anodized Aluminum |
Fabricante |
JW Winco/ Otto Ganter |
UPC |
634529231302 |
País de origen |
Alemania |
Tariff Code |
7609.00.0000 |
UNSPC |
31162908 |
