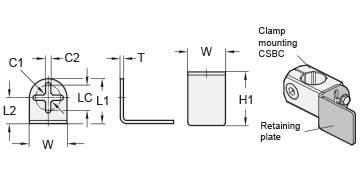

Dimensions | |||
---|---|---|---|
Tornillo de montaje central C1 |
M8 |
Tornillos de montaje de cruz C2 |
M4 |
De centro a centro LC |
20 mm |
Del borde al tornillo L2 |
20,5 mm |
Ancho del soporte W |
30 mm |
Espesor T |
2,5 mm |
Altura de la placa H1 |
42,5 mm |
Longitud de la base L1 |
35,5 mm |
Additional Information | |||
peso |
0.037000 |
Especificación de material |
Barra austenítica no magnética tipo AISI 303 |
Fabricante |
JW Winco/ Otto Ganter |
UPC |
634529229460 |
País de origen |
Alemania |
Tariff Code |
7609.00.0000 |
UNSPC |
31162908 |
||
Product Notes | |||
Nota 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
Prop. 65 |
|
