    main product photo

    VMTSC100-75-M16-40-FZNR

    58,45 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 58,45 €
    50 53,77 €
    100 48,69 €
    250 43,84 €
    500 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount
    Nur noch 1 verfügbar

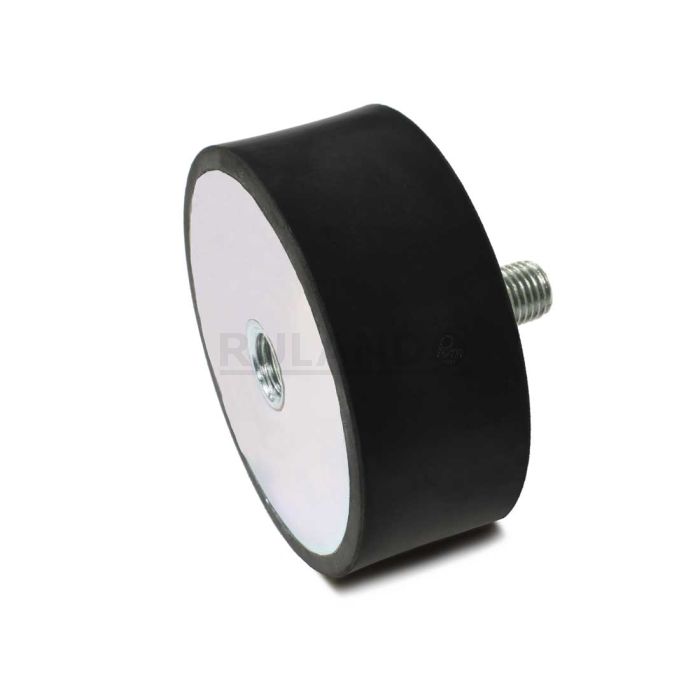

    Ruland VMTSC100-75-M16-40-FZNR, Vibration Isolation Mount, 100mm OD, M16 Threaded Stud, M16 Tapped Hole, 41mm Stud Length, 16mm Tapped Hole Depth, 75mm Height, 40 Shore A Natural Rubber Jacket, Steel

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland VMTSC100-75-M16-40-FZNR is a vibration isolation mount with one tapped hole and one threaded stud. It has a 100mm outside diameter, M16 threaded stud, M16 tapped hole, 41mm stud length, 16mm tapped hole depth, and 75mm height. This vibration isolation mount is used to dampen shock loads and reduce noise and wear on industrial equipment such as motors, conveyors, compressors, fans, or pumps which allows for a safer and more pleasant working environment. It is often referred to as a sandwich mount or rubber buffer because it functions as shock or vibration isolator sandwiched between two machine components or surfaces. The threaded stud side of VMTSC100-75-M16-40-FZNR can be mounted to the system by passing it through an unthreaded hole and securing with a nut or threading it directly into tapped hole on the component it will be mounted to. The tapped hole can be mounted to the system by threading it onto an existing stud on the component. VMTSC100-75-M16-40-FZNR has a rubber jacket that is made from natural rubber which has good elasticity and is well suited for most industrial equipment. It has 40 Shore A hardness for high dampening and shock absorption. The zinc plated steel body allows for high strength and is suitable for most industrial applications. VMTSC100-75-M16-40-FZNR is sourced from a premier partner, inventoried by Ruland, and RoHS3 compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    OG Style

    Threaded Hole & Stud

    OG VI Outside Diameter

    3,94 zoll (100 mm)

    Höhe (H1)

    2,95 zoll (75 mm)

    Gewinde (TH)

    M16 x 2,0

    Plattendicke (PT)

    0,12 zoll (3 mm)

    OG VI Stud Length

    1,61 zoll (41 mm)

    OG VI Tapped Hole Depth

    0,63 zoll (16,1 mm)
    Leistungsbeschreibungen

    Federrate

    2369,71 lb-zoll (415 N/mm)

    Shore Härte

    40A (+/- 5)

    Max. Ablenkung

    0,74 zoll (18,8 mm)

    Max. Belastung

    1751,26 lb (7790 N)
    zusätzliche Information

    Dämpfergeometrie

    Cylindrical

    Gummimaterial

    Naturkautschuk

    OG Metallic Body Material

    Stahl

    OG Metallic Body Finish

    Gelb zinkchromatiert

    Herkunftsland

    Ungarn

    Gewicht (kg)

    2.160500

    UPC

    634529355794

    Tariff Code

    4016.99.6000

    UNSPC

    31162804
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.
