| Abmessungen | |||
|---|---|---|---|
|

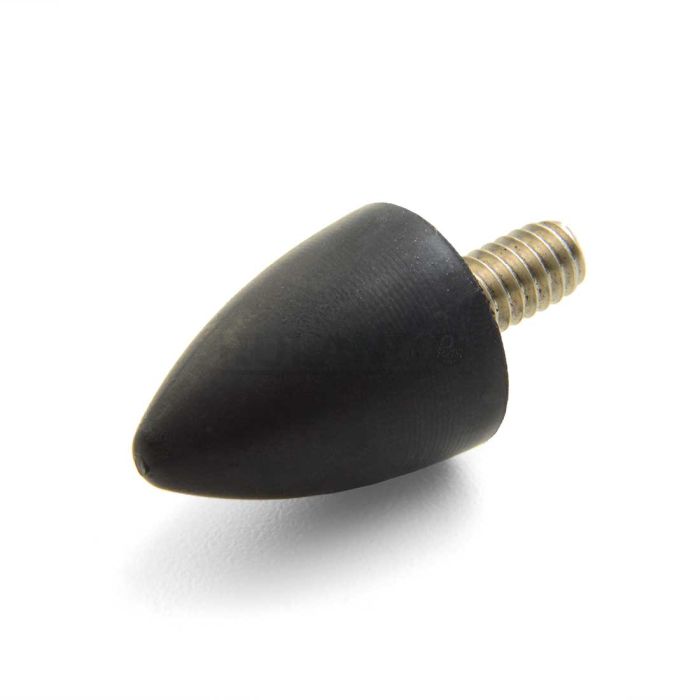

OG Style |
Threaded Stud |
OG VI Outside Diameter |
0,75 zoll (19 mm) |
|
Höhe (H1) |
0,98 zoll (25 mm) |
Gewinde (TH) |
1/4 zoll - 20 TPI |
|
Plattendicke (PT) |
0,08 zoll (2 mm) |
OG VI Stud Length |
0,5 zoll (12,7 mm) |
| Leistungsbeschreibungen | |||
|
Federrate |
90,96 lb-zoll (15,9 N/mm) |
Shore Härte |
55A (+/- 5) |
|
Max. Ablenkung |
0,24 zoll (6,1 mm) |
Max. Belastung |
22.00 lb (97,9 N) |
| zusätzliche Information | |||
|
Dämpfergeometrie |
Conical |
Gummimaterial |
Naturkautschuk |
|
OG Metallic Body Material |
Edelstahl |
OG Metallic Body Finish |
Glänzend Poliert |
|
Herkunftsland |
Ungarn |
Gewicht (kg) |
0.022000 |
|
UPC |
634529365182 |
Tariff Code |
4016.99.6000 |
|
UNSPC |
31162804 |
||
| Produkthinweise | |||
|
Anmerkung 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
||
