    USCL10-4-4-SS

    279,23 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 279,23 €
    5 256,89 €
    10 232,59 €
    25 209,42 €
    50 Angebot anfordern
    Built to Order Lead Time: 2 Weeks or Less
    Ruland USCL10-4-4-SS, 1/4" x 1/4" Single Universal Joint, Friction Bearing, Stainless Steel, Clamp, 0.620" OD, 2.250" Length

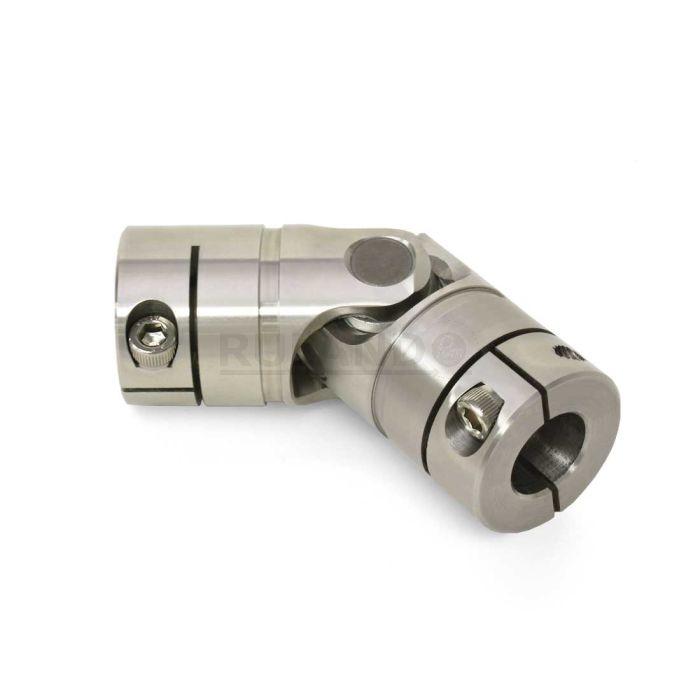

    main product photo

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland USCL10-4-4-SS is a single cardan friction bearing universal joint with 0.2500" x 0.2500" bores, 0.620" OD, 2.250" length, and M2 clamp screws. This plain bearing universal joint is comprised of pins and blocks that are precision machined, selectively heat treated, and ground for high strength, accuracy, and wear resistance. The combination of these components with precision ground and hardened yoke ears allow for a longer lifespan, increased performance in demanding applications, and greater angular misalignment of up to 45° when compared to commodity style single universal joints. Clamp style universal joints are an improvement over set screw style since they do not mar the shaft making them easy to remove, infinitely adjustable, and usable on any shaft. USCL10-4-4-SS is made from high grade stainless steel for increased corrosion resistance. It can be combined with boot UBOOT10/15-NI-KIT to protect the joint from unwanted contaminants such as dust or water and self lubricate reducing maintenance time. This single cardan universal joint is manufactured in the USA by Belden Universal for strict control of processes. Ruland, as a world leading manufacturer of clamping technology, manufactures the clamp profile and bores in our Massachusetts factory.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    0,2500 zoll

    Bohrung (B2)

    0,2500 zoll

    Max. Nabentiefe (B1)

    0,820 zoll

    Max. Nabentiefe (B2)

    0,820 zoll

    Gelenkaußendurchmesser

    0,620 zoll

    Bohrungstoleranz

    +0,0010 zoll / -0,0000 zoll

    Länge (L)

    2,250 zoll

    Gabellänge (LY)

    1,125 zoll

    Nabentiefe (LH)

    0,820 zoll
    Befestigungsschraube

    Innensechskantschraube

    M2

    Schraubenwerkstoff

    18-8 Cr-Ni Rostfreier Stahl

    Schraubenoberfläche

    Glänzend Poliert
    Leistungsbeschreibungen

    Nenndrehmoment

    95 zoll-lb

    Größer möglicher Arbeitswinkel

    45°
    zusätzliche Information

    Materialspezifikation

    Stainless Steel Universal Joints

    Hersteller

    Belden Universal

    Herkunftsland

    USA

    Gewicht (kg)

    0.143890

    UJ Lubricant

    LUBRIPLATE No. 1200-2

    Passender Faltenbalg

    UBOOT10/15-NI-KIT

    UPC

    63452937898

    Tariff Code

    8483.60.4000

    UNSPC

    25173810
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
