    SPX-14-12-SS

    200,46 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 200,46 €
    5 182,23 €
    25 151,87 €
    50 136,68 €
    100 Angebot anfordern
    In Production Lead Time: 1 Week or Less

    Ruland SPX-14-12-SS, 7/8" x 3/4" Rigid Coupling, 303 Stainless Steel, Two-Piece Clamp Style, 1 5/8" OD, 2 1/2" Length

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

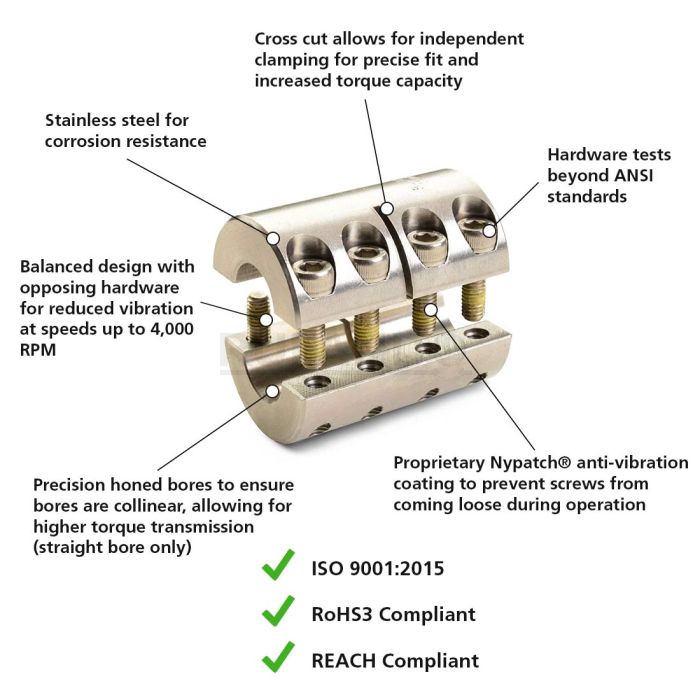

    Ruland SPX-14-12-SS is a two-piece rigid coupling with 0.8750" x 0.7500" bores, 1 5/8" OD, and 2 1/2" length. SPX-14-12-SS has opposing hardware for a balanced design. Proprietary Nypatch® anti-vibration coating on hardware allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. It eliminates the need to treat screws upon receipt greatly reducing installation time. Forged screws test beyond ANSI standards to ensure maximum holding power. Tightly controlled bore tolerance of +.002"/+.0005" is maintained. SPX-14-12-SS is made from 303 stainless steel with hardware of like material for consistent corrosion resistance. It is machined from solid bar stock that is sourced exclusively from North American mills and is RoHS3 and REACH compliant. SPX-14-12-SS is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    0,8750 zoll

    Bohrung (B2)

    0,7500 zoll

    Max. Nabentiefe (B1)

    1,250 zoll

    Max. Nabentiefe (B2)

    1,250 zoll

    Außendurchmesser (OD)

    1 5/8 zoll

    Bohrungstoleranz

    +0,0020 zoll / +0,0005 zoll

    Länge (L)

    2 1/2 zoll

    Platzbedarf C MAX

    1,932 zoll

    Empfohlenes Spaltmaß

    0,094 zoll

    Empfohlene Wellentoleranz

    +0,0000 zoll / -0,0005 zoll
    Befestigungsschraube

    Innensechskantschraube

    1/4-28

    Schraubenwerkstoff

    18-8 Cr-Ni Rostfreier Stahl mit Nypatch Beschichtung

    Größe Sechskantschlüssel

    3/16 zoll

    Schraubenoberfläche

    Glänzend Poliert

    Anzugsmoment

    110 lb-zoll

    Schraubenposition (R)

    0,600 zoll

    Anzahl der Schrauben

    je 4
    Leistungsbeschreibungen

    Nenndrehmoment

    1100 zoll-lb

    Trägheitsmoment

    0.4228 lb-in2

    Maximale Geschwindigkeit

    4.000 U/min

    Bearing Support Required

    Nein

    Hauseigene Nypatch® Anti-Vibrationsbeschichtung auf den Schrauben?

    Ja

    spielfrei?

    Ja

    Ausgewogenes Design?

    Ja
    zusätzliche Information

    Materialspezifikation

    1.4305 Austenitischer Stahl, nicht magnetisch, Stangenmaterial

    Temperaturbereich

    -40°C bis 176°C

    Spezifikation Oberflächenbehandlung

    Glänzend Poliert

    Hersteller

    Ruland Manufacturing

    Herkunftsland

    USA

    Gewicht (kg)

    1.020000

    UPC

    634529025802

    Tariff Code

    8483.60.8000

    UNSPC

    31163009
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

    Installationsanleitung

    1. Align the SPX-14-12-SS two-piece rigid coupling on the two shafts to be connected. There should be no misalignment.
    2. Tighten the Nypatch® screws in two stages, starting with the inside screws. Using a 3/16 in torque wrench, tighten the inside screws to 55 lb-in which is half the recommended seating torque. Repeat the process for the outside screws, tightening to half the recommended seating torque.
    3. Be sure to maintain the gap of 0.094 in between the two halves during installation.
    4. Tighten the screws to the full recommended seating torque of 110 lb-in following the same pattern, starting with the inside screws first.
    5. For optimum results do not exceed the shaft penetration length of 1.250 in.
