    SHIM12/19-A-KIT

    11,26 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 11,26 €
    10 8,45 €
    20 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount

    Ruland SHIM12/19-A-KIT, Pack of Shims for Jaw & Oldham Couplings, Aluminum, 32 Layers, 1.250" (31.8mm) Length, 0.210" (5.3mm) Width

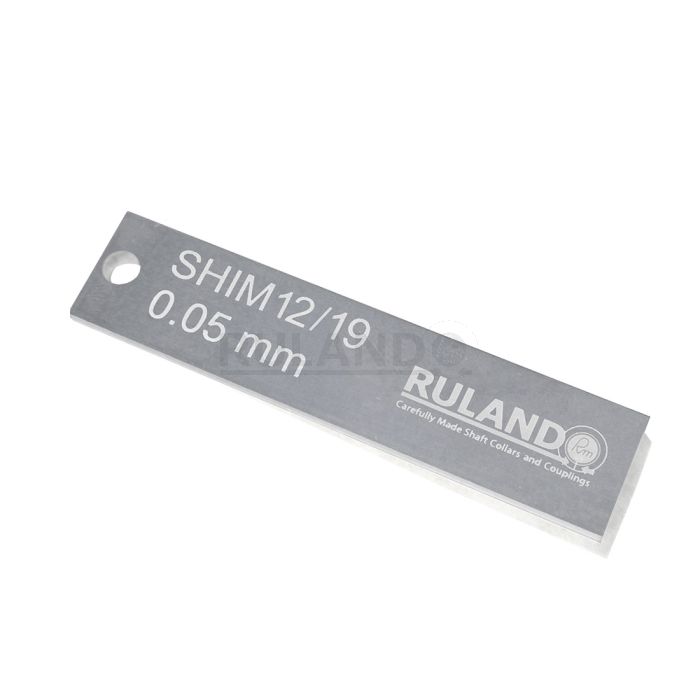

    main product photo

    PRODUKTSPEZIFIKATIONEN

    SHIM12/19-A-KIT is a pack of aluminum shims designed to aid in the installation of Ruland manufactured zero-backlash jaw and oldham couplings. It comes with 32 layers that can be peeled off with a knife or other sharp object. Each layer is 1.250" (31.8mm) long, 0.210" (5.3mm) wide, and .002" (.05mm) thick and made of 5052 aluminum for corrosion resistance, rigidity, and durability. It is used during the installation of Ruland zero-backlash jaw and oldham couplings with an outer diameter identifier of 12/19. SHIM12/19-A-KIT ensures proper spacing between the hubs and insert allowing the coupling to reach its full misalignment capabilities. The shim is simply slid into the space between the hub and insert while the user is tightening coupling hardware to its recommended seating torque and then removed once assembly is complete. SHIM12/19-A-KIT is manufactured by Georg Martin GmbH in Germany and RoHS3 and REACH compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Länge (L)

    31,8 mm (1,250 zoll)

    Breite (W)

    0,210 zoll (5,33 mm)

    Schichtdicke

    0,002 in (0,05 mm)

    Toleranz Schichtdicke

    +0,0003/-0,0000 mm

    Packungsdicke

    0,063 zoll (1,6 mm)
    zusätzliche Information

    Anzahl der Schichten

    32

    Gewicht (kg)

    0.001600

    Empfohlene Schichten für Elastomerkupplungen

    10

    Anzahl der Schichtbleche für Oldhamkupplungen

    2

    Materialspezifikation

    Aluminium Legierung 5052

    Hersteller

    Georg Martin GmbH

    Herkunftsland

    Deutschland

    Tariff Code

    7616.99.5120

    UNSPC

    31231404
