    MT8/8-CC90-AN

    25,55 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 25,55 €
    10 23,51 €
    25 21,28 €
    50 19,16 €
    100 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount
    Nur noch 4 verfügbar

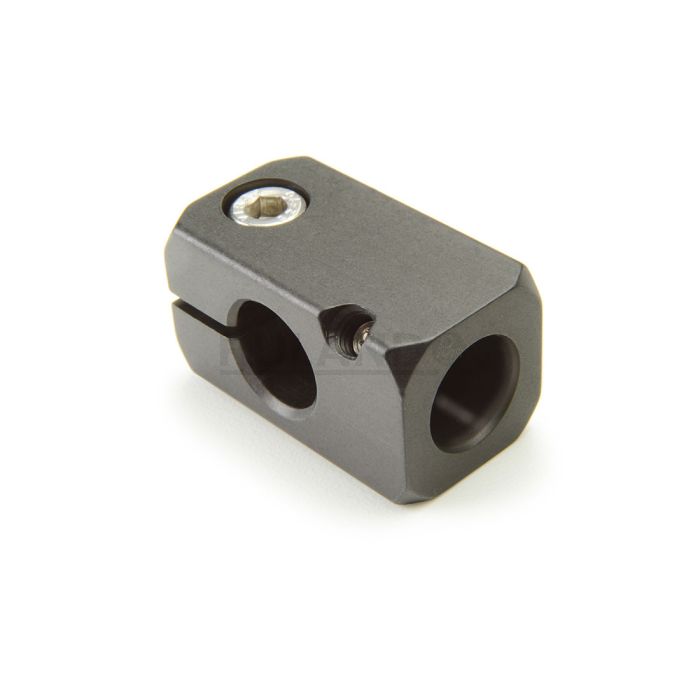

    Ruland T-Connector Mini-Clamp, Thru Holes 8mmx8mm, Length 26.0mm, Black Anodized Aluminum
    main product photo

    PRODUKTSPEZIFIKATIONEN

    Ruland MT8/8-CC90-AN is a 90 degree connector with a thru hole for 8mm round tube, blind hole for 8mm round tube, and 26.0mm overall length. It is designed to fit on Ruland tubes and flange bolt bases that begin with MT8. MT8/8-CC90-AN is aluminum with a black anodized finish and screws are 304 stainless steel for added corrosion resistance when compared to unplated types. This 90 degree connector clamp is commonly used to support tubes for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The blind hole reduces complication in assembly and limits the possibility of a mistake being made by inserting a tube too far into the connector for it to function properly. The thru hole allows designers flexibility to reposition the clamp or tube as needed. MT8-ALK-M4-16 adjustable clamping lever can be used in place of standard clamp hardware for rapid repositioning of the tube or connector without the need for tools. MT8/8-CC90-AN is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Durchgangsbohrung 1 B1

    8 mm

    Durchmesser Bohrung 2 B2

    8 mm

    Bohrungstoleranz

    +0,09/-0 mm

    Körper Länge L1

    26 mm

    Kante zur Mitte L2

    13 mm

    Schraube zu Kante LS

    5,5 mm

    Tiefe Bohrung T

    8 mm

    Breite und Höhe W1

    16 mm
    Befestigungsschraube

    Klemmschraube CL

    M4

    Stellschraube SS

    M4
    zusätzliche Information

    Gewicht (kg)

    0.016000

    Materialspezifikation

    Eloxiertes Aluminium

    Hersteller

    JW Winco/ Otto Ganter

    UPC

    634529232040

    Herkunftsland

    Deutschland

    Tariff Code

    7609.00.0000

    UNSPC

    31162908
    Produkthinweise

    Anmerkung 1

    Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

    Prop 65

    WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
