MT8/8-CC2WA-A

51,04 €
Menge Preis (USD)
1 51,04 €
10 46,96 €
25 42,52 €
50 38,28 €
100 Angebot anfordern
Auf Lager
Registered users receive a 5% discount
Nur noch 3 verfügbar

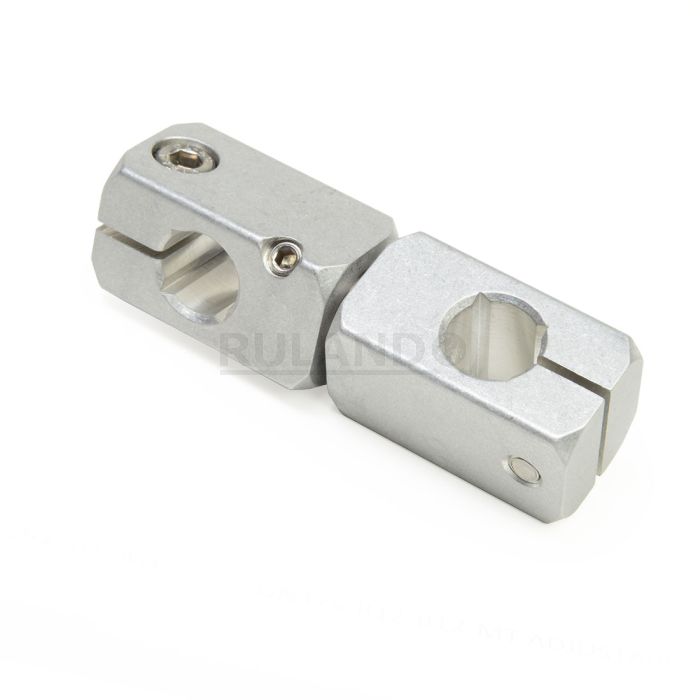

Ruland Adjustable Two-Way Connector Clamp, Thru Holes 8mmx8mm, L 52.5mm, W 16mm, Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT8/8-CC2WA-A an adjustable two-way connector clamp with thru holes for 8mm round tubes, M4 clamp screws, 16mm width and height, and 52.5mm overall length. It is designed to fit on Ruland tubes and flange bolt bases that begin with MT8. MT8/8-CC2WA-A is aluminum and screws are 304 stainless steel for use in most industrial applications. This two-way adjustable connector clamp is commonly used to support tubes for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. It is designed for applications where frequent angular adjustments are needed such as machine diagnostic screens. When paired with MT8-ALK-M4-16 adjustable clamping levers the user can rapidly reposition the screen angularly and/or vertically without tools providing for a safer and more comfortable working environment for the employee and helping to increase productivity. MT8/8-CC2WA-A is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Durchgangsbohrung 1 B1

8 mm

Durchmesser Bohrung 2 B2

8 mm

Bohrungstoleranz

+0,09/-0 mm

Durchgangsbohrung 2

+0,09/-0 mm

Breite und Höhe W1

16 mm

Breite und Höhe 2 W2

16 mm

Kante zur Mitte 1 L2

13 mm

Kante zur Mitte 2 L3

13 mm

Mitte zu Mitte LC

26,5 mm

Gesamtlänge L1

52,5 mm

Befestigungsschraube

Klemmschraube CL

M4

Stellschraube SS

M4

zusätzliche Information

Gewicht (kg)

0.034000

Materialspezifikation

Aluminium

Hersteller

JW Winco/ Otto Ganter

UPC

634529231814

Herkunftsland

Deutschland

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

Prop 65

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
