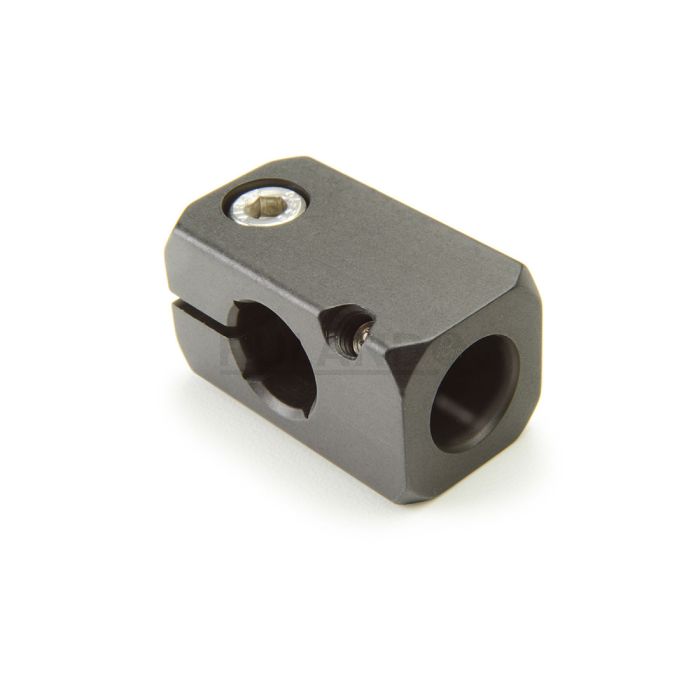

Ruland T-Connector Mini-Clamp, Thru Holes 20mmx20mm, Length 51.0mm, Black Anodized Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT20/20-CC90-AN is a 90 degree connector with a thru hole for 20mm round or 16mm square tube, blind hole for 20mm round blind hole, and 51.0mm overall length. It is designed to fit on Ruland tubes and flange bolt bases that begin with MT20. MT20/20-CC90-AN is aluminum with a black anodized finish and screws are 304 stainless steel for added corrosion resistance when compared to unplated types. This 90 degree connector clamp is commonly used to support tubes for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The blind hole reduces complication in assembly and limits the possibility of a mistake being made by inserting a tube too far into the connector for it to function properly. The thru hole allows designers flexibility to reposition the clamp or tube as needed. MT20-ALK-M6-30 adjustable clamping lever can be used in place of standard clamp hardware for rapid repositioning of the tube or connector without the need for tools. MT20/20-CC90-AN is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Durchgangsbohrung 1 B1

20 mm

Durchmesser Bohrung 2 B2

20 mm

Bohrungstoleranz

+0,13/-0 mm

Vierkantbohrung S

16 mm

Körper Länge L1

51 mm

Kante zur Mitte L2

22 mm

Schraube zu Kante LS

12 mm

Tiefe Bohrung T

18 mm

Breite und Höhe W1

30 mm

Befestigungsschraube

Klemmschraube CL

M6

Stellschraube SS

M6

zusätzliche Information

Gewicht (kg)

0.080000

Materialspezifikation

Eloxiertes Aluminium

Hersteller

JW Winco/ Otto Ganter

UPC

634529232002

Herkunftsland

Deutschland

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

Prop 65

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
