MT12-CSSWBH-AN

30,41 €
Menge Preis (USD)
1 30,41 €
10 27,98 €
25 25,33 €
50 22,81 €
100 Angebot anfordern
Auf Lager
Registered users receive a 5% discount
Nur noch 4 verfügbar

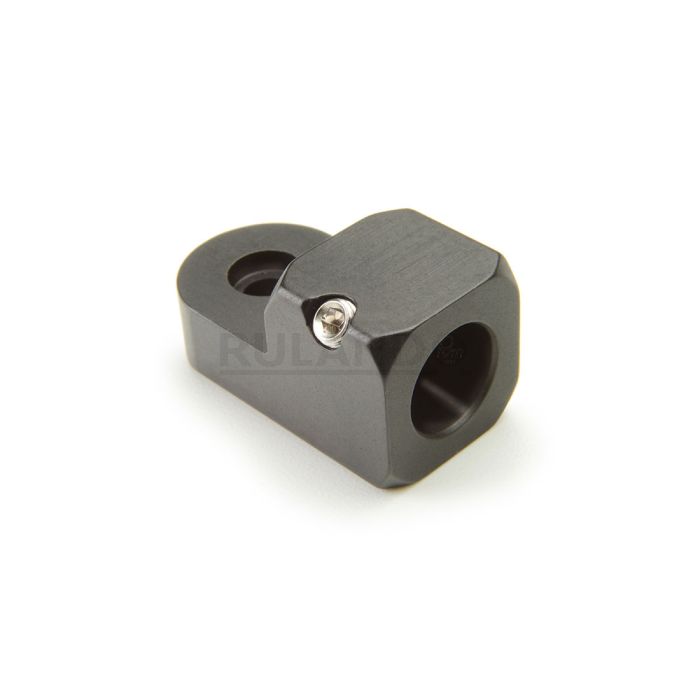

Ruland Set Screw Swivel Clamp Joint, Swivel Thru Hole 5.5mm, Thru Hole 12mm, L 38mm, Black Anodized Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT12-CSSWBH-AN is a swivel clamp joint with a blind hole for 12mm round tube, M5 set screws, 10mm base height, 20mm width and height, and 38mm overall length. It is designed to fit with MT10:12 swivel clamp bases, MT12 clamp connectors and mounting blocks, and MT12 round tubes. When combined with a swivel bases or attachment clamp joints, it is an ideal articulating mounting solution for screens, sensors, reflectors, plexiglass machine guards, and other components that require frequent adjustments. The blind hole reduces complication in assembly and limits the possibility of a mistake being made by inserting a tube too far into the connector for it to function properly. An MT10:12-SWALK-M5-20 adjustable clamping handle can be used to join it to other Ruland swivel components for rapid repositioning without the use of tools. This part is aluminum with a black anodized finish for added corrosion resistance when compared to unplated types. MT12-CSSWBH-AN is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Durchmesser Bohrung B

12 mm

Durchmesser Gegenbohrung K1

8,5 mm

Durchmesser Gegenbohrung K2

5,5 mm

Gesamtlänge L1

38 mm

Nabenlänge H2

17 mm

Kante zur Mitte L2

28 mm

Halterungshöhe H1

10 mm

Breite und Höhe W1

20 mm

Tiefe Bohrung T

12 mm

Stellschraube SS

M5

Schraube zu Kante LS

8 mm

zusätzliche Information

Materialspezifikation

Eloxiertes Aluminium

Hersteller

JW Winco/ Otto Ganter

Herkunftsland

Deutschland

Gewicht (kg)

0.029200

UPC

634529230268

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

Prop 65

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
