MT10-CSBC-M5-AN

25,00 €
Menge Preis (USD)
1 25,00 €
10 23,00 €
25 20,83 €
50 18,75 €
100 Angebot anfordern
Auf Lager
Registered users receive a 5% discount
Nur noch 3 verfügbar

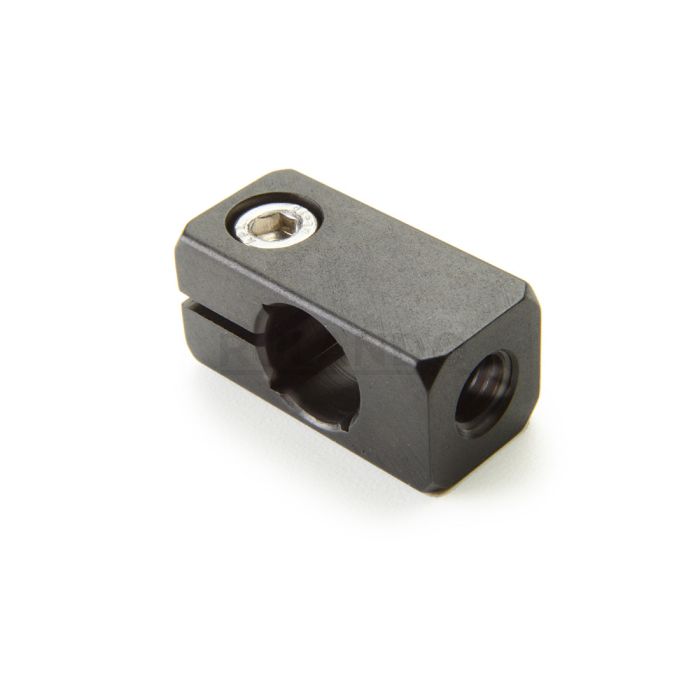

Ruland Sensor Bracket Clamp Connector, Thru Hole 10mm, Thread M5, L 30mm, Black Anodized Aluminum

PRODUKTSPEZIFIKATIONEN

Ruland MT10-CSBC-M5-AN is a sensor bracket clamp connector that attaches to a 10mm round or 8mm square tube and has an M5 center tapped hole, 16mm width and height, and 30mm overall length. It is designed to fit on Ruland tubes and flange bolt bases that begin with MT10. MT10-CSBC-M5-AN is aluminum with a black anodized finish and screws are 304 stainless steel for added corrosion resistance when compared to unplated types. This bracket clamp is used to support brackets for mounting sensors, screens, reflectors, plexiglass machine guards, and other industrial components. The bracket is mounted directly to the clamp by a single M5 screw. An MT10:12-ALK-M5-20adjustable clamping handle can be used to rapidly reposition MT10-CSBC-M5-AN or the tube it is attached to without the use of tools. MT10-CSBC-M5-AN is manufactured by Otto Ganter, inventoried by Ruland, and RoHS3 compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Durchmesser Bohrung B

10 mm

Bohrungstoleranz

+0,09/-0 mm

Vierkantbohrung S

8 mm

Gewinde (TH)

M5

Länge Gewinde LT

8 mm

Kante zur Mitte L2

17 mm

Breite und Höhe W1

16 mm

Gesamtlänge L1

30 mm

Befestigungsschraube

Klemmschraube CL

M5

zusätzliche Information

Gewicht (kg)

0.016000

Materialspezifikation

Eloxiertes Aluminium

Hersteller

JW Winco/ Otto Ganter

UPC

634529230602

Herkunftsland

Deutschland

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

Prop 65

WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
