Ruland Swivel Mounting Block, Width/Height 20mm, Length 38mm, Black Anodized Aluminum

PRODUKTSPEZIFIKATIONEN

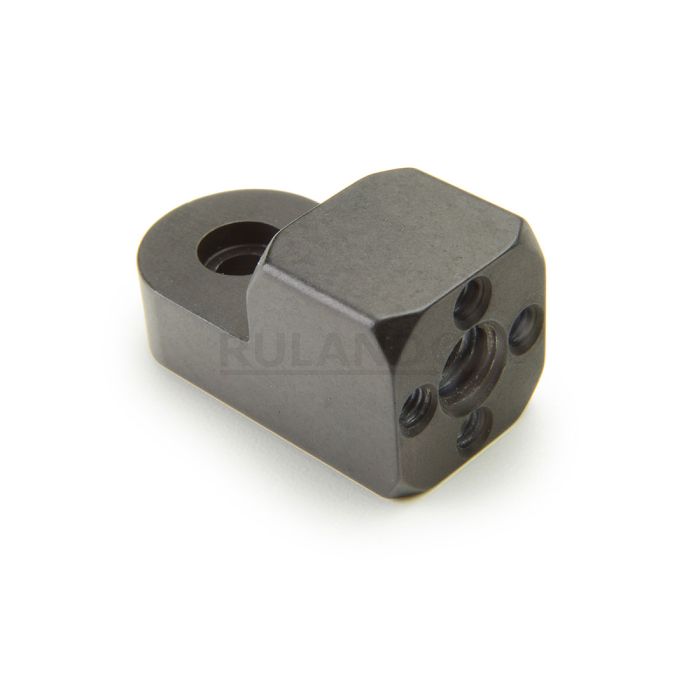

Ruland MT10:12-SWMB-M8-AN is an swivel mounting block with a M8 center thread, M4 cross threads, 10mm base height, 8.5mm recess diameter, 20mm width/height, and 38mm overall length. It is made of aluminum with a black anodized finish. Swivel mounting blocks are primarily designed to mount sensor and mounting brackets with the same width/height. In addition, this part can be combined with swivel and t-swivel clamp joints with the same width/height to make articulated swivel clamp mounting joints. Adjustable lever clamping kits with the same width/height can be attached to the swivel mounting block.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Mittiges Gewinde C1

M8

Kreuz Gewinde C2

M4 x 4

Durchmesser Gegenbohrung K1

8,5 mm

Durchmesser Gegenbohrung K2

5,5 mm

Breite und Höhe W1

20 mm

Halterungshöhe H1

10 mm

Mitte zu Mitte LC

14 mm

Kante zur Mitte der Gelenkbohrung L2

28 mm

Gesamtlänge L1

38 mm

Nabenlänge H2

17 mm

zusätzliche Information

Materialspezifikation

Eloxiertes Aluminium

Hersteller

JW Winco/ Otto Ganter

Herkunftsland

Deutschland

Gewicht (kg)

0.023300

UPC

634529230022

Tariff Code

7609.00.0000

UNSPC

31162908

Produkthinweise

Anmerkung 1

Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.
