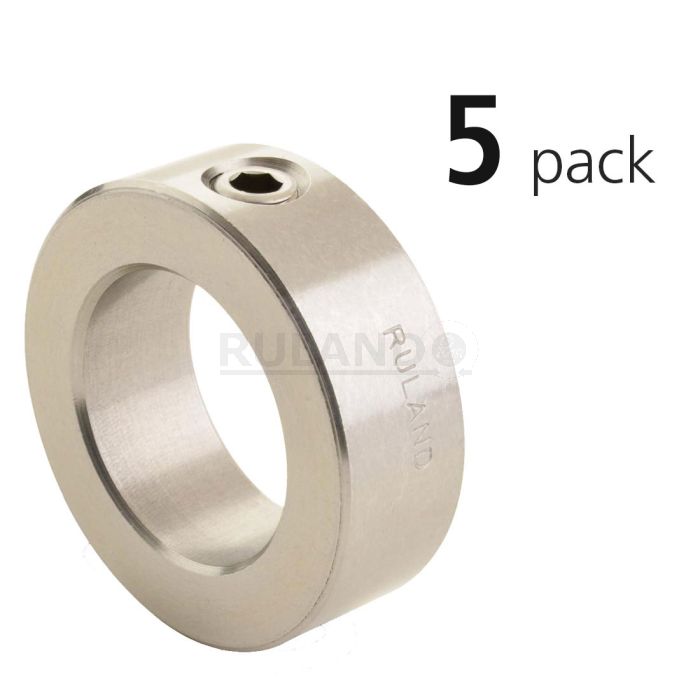

    main product photo

    MSC-4-SS/5PK

    Product Discontinued. Click here to see similar items.

    35,45 €
    Artikeldetails Datenblatt
    Merken
    Email
    Product DiscontinuedPlease inquire for special pricing
    Ruland MSC-4-SS/5PK, 5 Pack of 4mm Set Screw Shaft Collars, 303 Stainless Steel, 8mm OD, 5mm Width

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland MSC-4-SS/5PK is a 5 pack of set screw shaft collars, each with a 4mm bore, 8mm OD, and 5mm width. These set screw shaft collars are commonly used for guiding, spacing, stopping, and component alignment in light duty applications where the collar is infrequently repositioned or removed. Holding power is derived from the screw as it is tightened onto the shaft. In order for the collar to obtain maximum holding power the shaft must be softer than the material of the screw. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. All shaft collars in this pack are stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. The use of forged stainless steel hardware has the additional benefit of work hardening resulting in stainless steel with elevated hardness and performance. The shaft collars in this pack are machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses 303 stainless steel with hardware of like material for consistent corrosion resistance. Shaft collars in MSC-4-SS/5PK are RoHS3 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    4 mm

    Breite (W)

    5 mm

    Außendurchmesser (OD)

    8 mm

    Breitentoleranz

    +0,076 mm / -0,254 mm

    Bohrungstoleranz

    +0,050 mm / +0,012 mm

    Empfohlene Wellentoleranz

    +0,000 mm / -0,013 mm
    Befestigungsschraube

    Gewindestift mit Innensechskant

    M2,5 x 3

    Schraubenwerkstoff

    18-8 Cr-Ni Rostfreier Stahl

    Größe Sechskantschlüssel

    1,3 mm

    Schraubenoberfläche

    Glänzend Poliert

    Anzugsmoment

    0,44 Nm

    Anzahl der Schrauben

    je 1
    zusätzliche Information

    Materialspezifikation

    1.4305 Austenitischer Stahl, nicht magnetisch, Stangenmaterial

    Multipack Quantity

    5

    Temperaturbereich

    -40°C bis 176°C

    Herkunftsland

    USA

    Hersteller

    Ruland Manufacturing

    Gewicht (kg)

    0.016100

    Tariff Code

    8483.60.8000

    UPC

    634529314333
    Produkthinweise

    Anmerkung 1

    This product has been discontinued as a standard item. Please inquire for special pricing.

    Anmerkung 2

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

    Installationsanleitung

    1. Use the MSC-4-SS set screw shaft collar as it is received.
    2. Wipe the bore clean.
    3. Apply a thin coat of light oil to the shaft.
    4. Place the collar onto the desired shaft location and tighten it using a 1.3 mm hex wrench until a slight resistance is felt.
    5. Wring collar into its final position and tighten the screw to the full recommended seating torque of 0.44 Nm using a 1.3 mm torque wrench.
