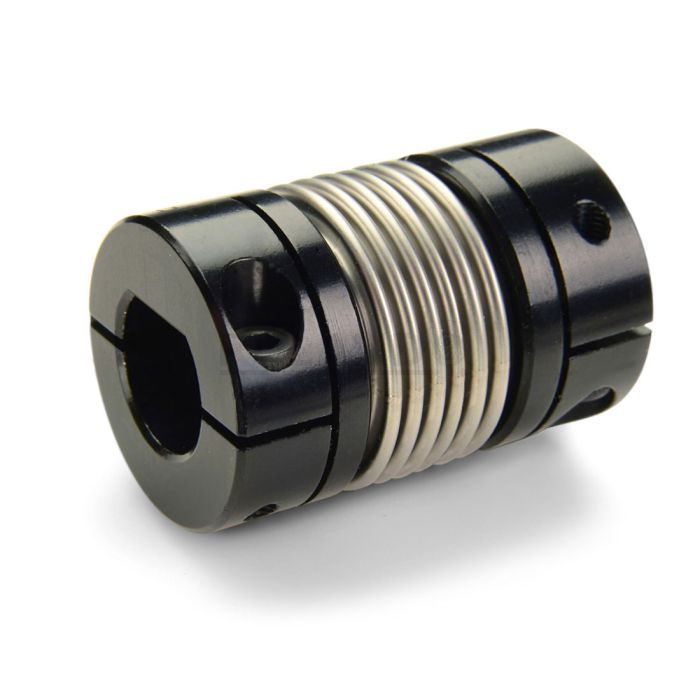

    main product photo

    MBCL19-7/6.5D-6/5.5D-A

    231,31 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 231,31 €
    10 210,29 €
    25 157,01 €
    50 94,28 €
    100 Angebot anfordern
    Out of Stock Lead Time: 2 Weeks or Less
    Ruland MBCL19-7/6.5D-6/5.5D-A, 7/6.5Dmm x 6/5.5Dmm Bellows Coupling with D-Bores, Increased Misalignment, Aluminum, 19.1mm, OD 34.4 mm Length

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland MBCL19-7/6.5D-6/5.5D-A is a d-bore bellows coupling with increased misalignment with 7/6.5Dmm x 6/5.5Dmm bores, 19.1mm OD, and 34.4 mm length. The d-bore allows for positive drive in applications where the coupling can not slip. It has fewer convolutions than comparably sized high misalignment styles allowing for increased torsional stiffness making it the ideal choice for precision positioning applications. MBCL19-7/6.5D-6/5.5D-A is comprised of two anodized aluminum hubs and a stainless steel bellows for lightweight and low inertia. It is also engineered with a balanced design for reduced vibration at high speeds up to 10,000 RPM. The thin walls of the bellows are able to flex while remaining rigid under torsional loads allowing for the accommodation of all forms of misalignment. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. MBCL19-7/6.5D-6/5.5D-A is machined from meticulously selected bar stock that is sourced exclusively from North American mills. It is carefully made in our ISO 9001:2015 advanced manufacturing facility in Marlborough, MA under strict controls using proprietary processes. It is carefully made in our ISO 9001:2015 advanced manufacturing facility in Marlborough, MA under strict controls using proprietary processes. MBCL19-7/6.5D-6/5.5D-A is RoHS3, REACH, and Conflict Minerals compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    7/6.5D mm

    Bohrung (B2)

    6/5.5D mm

    Flat F1

    6,50 mm

    Flat F2

    5,50 mm

    Max. Nabentiefe (B1)

    14,5 mm

    Max. Nabentiefe (B2)

    14,5 mm

    Außendurchmesser (OD)

    19,1 mm (0,750 zoll)

    Bohrungstoleranz

    +0,03 mm / -0,00 mm

    Flat Tolerance

    +.002”/-.000”

    Länge (L)

    1,355 zoll (34,4 mm)

    Längetoleranz

    +/- 0,76 mm

    Nabenbreite (LH)

    10,40 mm

    Empfohlene Wellentoleranz

    +0,000 mm / -0,013 mm
    Befestigungsschraube

    Innensechskantschraube

    M2,5

    Schraubenwerkstoff

    Legierter Stahl

    Größe Sechskantschlüssel

    2,0 mm

    Schraubenoberfläche

    Brüniert

    Anzugsmoment

    1,21 Nm

    Anzahl der Schrauben

    je 2
    Peformance Specifications

    Dynamisches Drehmoment Umkehrend

    1,13 Nm

    Winkelversatz

    3,0°

    Dynamisches Drehmoment Nichtumkehrend

    2,25 Nm

    Paralellversatz

    0,20 mm

    Statisches Drehmoment

    4,5 Nm

    Axialbewegung

    0,51 mm

    Torsionssteife

    9,8 Nm/Deg

    Trägheitsmoment

    7.120 x 10-7 kg-m2

    Maximale Geschwindigkeit

    10.000 U/min

    Bearing Support Required

    Ja

    Average Load at Max Parallel Offset

    3.2 N

    Average Slope

    8.6 N/mm

    spielfrei?

    Ja

    Ausgewogenes Design?

    Ja
    Recommended Installation Tools

    Recommended Torque Wrench

    TW:BT-1R-1/4-10.7

    Recommended Hex Key

    Metric Hex Keys
    zusätzliche Information

    Materialspezifikation

    Naben aus 2024-T351 Aluminium Stangenmaterial, Balge aus AISI 321 / 1-4541 Rostfreiem Stahl

    Temperaturbereich

    -40°C bis 93°C

    Spezifikation Oberflächenbehandlung

    Schwarz eloxiert nach MIL-A-8625 Type II, Class 2 und ASTM B580 Type B

    Bellows Attachment Method

    Epoxid

    Hersteller

    Ruland Manufacturing

    Herkunftsland

    USA

    Gewicht (kg)

    0.031177

    UPC

    65432941981

    Tariff Code

    8483.60.8000

    UNSPC

    31163018
    Produkthinweise

    Anmerkung 1

    Stainless steel hubs are available upon request.

    Anmerkung 2

    Torque ratings are at maximum misalignment.

    Anmerkung 3

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Anmerkung 4

    Torque ratings for the couplings are based on the physical limitations/failure point of the metal bellows. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the metal bellows. In some cases especially when the smallest standard bores are used or where shafts are undersized slippage on the shaft is possible below the rated torque of the metal bellows. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance.
