LF30-CL-M4:12-ZS-O

20,74 €
Menge Preis (USD)
1 20,74 €
250 19,08 €
500 17,27 €
1000 15,56 €
1500 Angebot anfordern
Auf Lager
Registered users receive a 5% discount

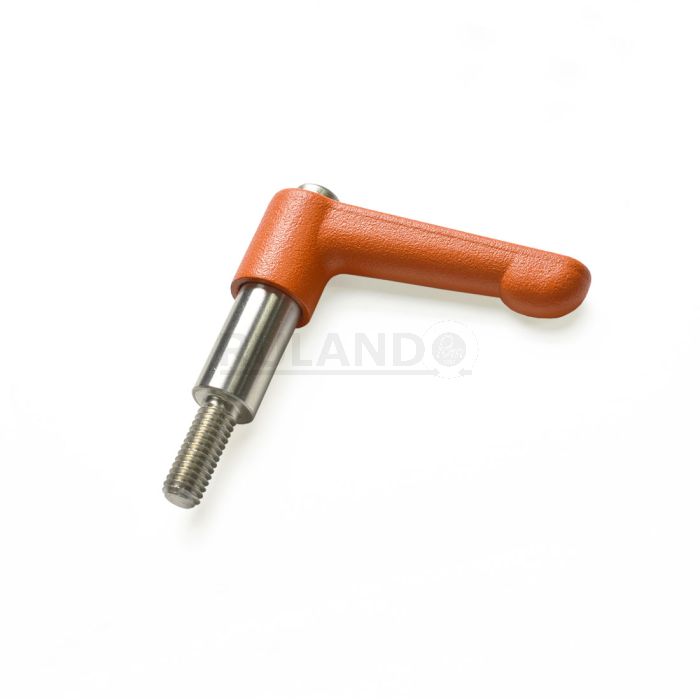

Ruland Flat Orange Adjustable Lever, Lever Length 30mm, Stud Thread M4, Stud Length 12mm, Sleeve Length 12mm, Zinc Lever, Stainless Steel Inserts

Ähnliche Produkte

PRODUKTSPEZIFIKATIONEN

Ruland LF30-CL-M4:12-ZS-O is an adjustable clamping lever with a 30mm long flat handle, M4 threaded stud, 12mm stud length, 12mm sleeve, and 32mm overall height. The threaded stud is designed to replace standard M4x12 hardware in Ruland one- and two-piece shaft collars. Once installed on the shaft collar, the lever is turned until the user reaches their desired torque. It does not require any tools to install, making it ideal for applications that require frequent setup changes and adjustments. LF30-CL-M4:12-ZS-O is orange for safety and ease of identification. It is manufactured by Otto Ganter, stocked by Ruland, and RoHS3 and REACH compliant.

PRODUKTSPEZIFIKATIONEN

Abmessungen

Gewinde (TH)

M4

Bolzenlänge LS

12 mm

Hebellänge L1

30 mm

Gesamthöhe H1

32 mm

Nabenhöhe H2

30 mm

Nabendurchmesser DH

13 mm

Gewindesteigung

0,7 mm

Ärmel Länge L2

12 mm

Hülsendurchmesser D1

7,2 mm

zusätzliche Information

Griffmaterial

Zinc

Grifffarbe

orange

Material für Einsatz und Schraube

303 Stainless Steel

Gewicht (kg)

0.063900

Hersteller

JW Winco/ Otto Ganter

UPC

634529291733

Herkunftsland

Deutschland

Tariff Code

8487.90.0080

UNSPC

31162807

Produkthinweise

Anmerkung 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Prop 65

WARNING This product can expose you to chemicals including Soots, Benzene, Lead, and Nickel (metallic), known to the State of California to cause cancer, and Lead and Benzene known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

LF30-CL-M4:12-ZS-O
