| Abmessungen | |||
|---|---|---|---|
|
Außendurchmesser (OD) |
3,125 zoll (79,4 mm) |
||
| Leistungsbeschreibungen | |||
|
Nenndrehmoment |
2.760 zoll-lb (311,84 Nm) |
Winkelversatz |
0,8° |
|
Spitzen Drehmoment |
5.520 zoll-lb (623,7 Nm) |
Paralellversatz |
0,008 zoll (0,20 mm) |
|
Torsionssteife |
1850 lb-zoll/Deg (209,02 Nm/Deg) |
Trägheitsmoment |
0.217711 lb-in2 (7.953 X 10-5 kg-m2) |
|
Axialbewegung |
0,060 zoll (1,52 mm) |
Maximale Geschwindigkeit |
8.000 U/min |
|
Bearing Support Required |
Ja |
spielfrei? |
Ja |
|
Approximate Assembly Force |
850 lbf |
Bearing Load at Max Parallel Misalignment |
85 lbf |
| zusätzliche Information | |||
|
Gewicht (kg) |
0.187700 |
Temperaturbereich |
23°C bis 82°C |
|
Materialspezifikation |

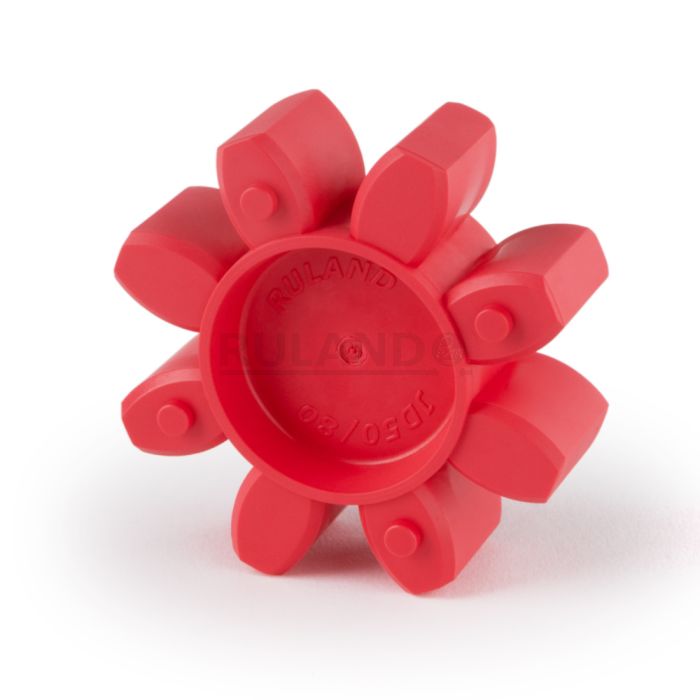

Shorehärte 98 A Rot Polyurethan |
Spezifikation Oberflächenbehandlung |
Poliert |
|
Hersteller |
Ruland Manufacturing |
UPC |
634529375976 |
|
Herkunftsland |
USA |
Tariff Code |
8483.60.8000 |
|
UNSPC |
31163011 |
||
| Produkthinweise | |||
|
Anmerkung 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
Anmerkung 2 |
Torque ratings for the couplings are based on the physical limitations/failure point of the spiders. Under normal/typical conditions the hubs are capable of holding up to the nominal torque of the spiders. In some cases especially when the smallest standard bores are used or where shafts are undersized slippage on the shaft is possible below the nominal torque of the spiders. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance. |
