JD44/70-98R
49,87 €

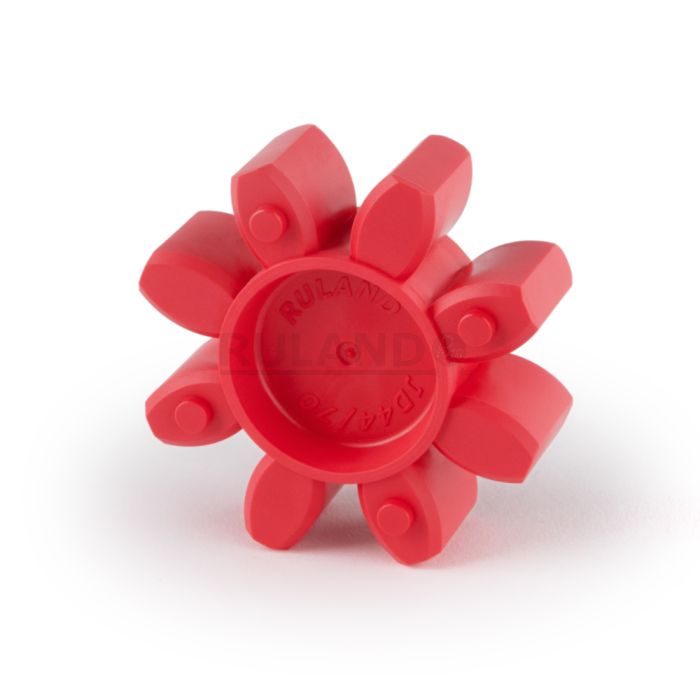

Jaw Coupling Spider, 98 Shore A Red, 2.750" (69.9mm) OD
Due to Microsoft's discontinuation of updates, including security, certain functionality such as checkout and CAD may not work for you. We recommend using Google Chrome, Microsoft Edge, Firefox, or Safari to ensure full functionality.Thank you - the Ruland team
Ähnliche Produkte
PRODUKTSPEZIFIKATIONEN
Ruland JD44/70-98R is a zero-backlash jaw coupling spider designed to fit Ruland hubs that have an 2.750" (69.9mm) OD. It is a component in a three-piece design consisting of two aluminum hubs and an elastomeric insert called the spider creating a lightweight low inertia coupling capable of speeds up to 8,000 RPM. This three-piece design allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. JD44/70-98R is made from polyurethane and has 98 Shore A hardness allowing for the highest torque capacity with limited compliance. Ruland jaw couplings have a balanced design for reduced vibration at high speeds. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. JD44/70-98R is RoHS3 and REACH compliant.
PRODUKTSPEZIFIKATIONEN
| Abmessungen | |||
|---|---|---|---|
|
Außendurchmesser (OD) |
2,750 zoll (69,9 mm) |
||
| Leistungsbeschreibungen | |||
|
Nenndrehmoment |
1.320 zoll-lb (149,14 Nm) |
Winkelversatz |
0,8° |
|
Spitzen Drehmoment |
2.640 zoll-lb (298,28 Nm) |
Paralellversatz |
0,008 zoll (0,20 mm) |
|
Torsionssteife |
1600 lb-zoll/Deg (180,8 Nm/Deg) |
Trägheitsmoment |
0.113995 lb-in2 (3.336 X 10-5 kg-m2) |
|
Axialbewegung |
0,060 zoll (1,52 mm) |
Maximale Geschwindigkeit |
8.000 U/min |
|
Bearing Support Required |
Ja |
spielfrei? |
Ja |
|
Approximate Assembly Force |
350 lbf |
Bearing Load at Max Parallel Misalignment |
95 lbf |
| zusätzliche Information | |||
|
Gewicht (kg) |
0.128900 |
Temperaturbereich |
23°C bis 82°C |
|
Materialspezifikation |
Shorehärte 98 A Rot Polyurethan |
Spezifikation Oberflächenbehandlung |
Poliert |
|
Hersteller |
Ruland Manufacturing |
UPC |
634529409060 |
|
Herkunftsland |
USA |
Tariff Code |
8483.60.8000 |
|
UNSPC |
31163011 |
||
| Produkthinweise | |||
|
Anmerkung 1 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
Anmerkung 2 |
Torque ratings for the couplings are based on the physical limitations/failure point of the spiders. Under normal/typical conditions the hubs are capable of holding up to the nominal torque of the spiders. In some cases especially when the smallest standard bores are used or where shafts are undersized slippage on the shaft is possible below the nominal torque of the spiders. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance. |
