    IPNW-10-12-M16X1.5-F

    24,10 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 24,10 €
    100 22,18 €
    250 20,07 €
    500 18,08 €
    1000 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount
    Nur noch 4 verfügbar

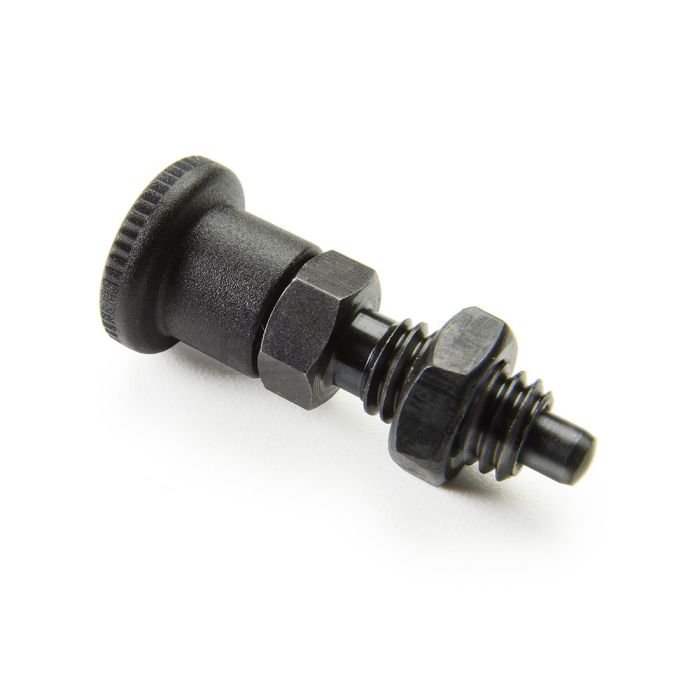

    Ruland Indexing Plunger, With Locknut, Thread M16x1.5, Pin Diameter 10mm, Knob Diameter 28mm, L 58mm, Steel

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland IPNW-10-12-M16X1.5-F is a steel indexing plunger with a locknut. It has a 10mm pin diameter, 12mm pin length, M16x1.5 thread, 26mm tapped thread length, 28mm knob diameter, and 58mm overall length. This indexing plunger is commonly used for height adjustments, rotational or swivel limits, and as a quick way to detach a movable component from a stationary one. The threaded body allows it to be installed directly onto a machine or component. To operate, the user simply retracts the knob pulling the pin into the body of the plunger allowing a previously fixed component to be moved. Once the component is in the desired position, the user reinserts the pin into a mating hole in the stationary component. The locknut allows the user to provide an axial stop ensuring precise positioning of the indexing plunger at all times. The knob of IPNW-10-12-M16X1.5-F partially encloses the top of the plunger body, allowing less debris to enter the mechanism, which is critical when used in environments that commonly have metal chips and other contaminants. It is manufactured by Otto Ganter, stocked by Ruland, and RoHS3 compliant.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Gesamtlänge L1

    58 mm

    Körper Länge L2

    26 mm

    Gewinde (TH)

    M16X1,5

    Knopfhöhe H1

    24 mm

    Knopfdurchmesser D1

    28 mm

    Stiftdurchmesser D2

    10 mm

    Stiftlänge L3

    12 mm

    Mutternhöhe HN1

    8 mm

    Mutternhöhe 2 HN2

    8 mm

    Größe Sechskantmutter

    17 mm
    zusätzliche Information

    Federdruck Anfang

    9,5 N

    Federdruck Ende

    38 N

    Rastbolzen Stifttoleranz

    -0,02/-0,05 mm

    Bohrungstoleranz

    +0,015/-0 mm

    Gewicht (kg)

    0.105500

    Temperaturbereich

    -40°C bis 110°C

    Hersteller

    JW Winco/ Otto Ganter

    UPC

    634529229675

    Herkunftsland

    Deutschland

    Tariff Code

    7318.29.0000

    UNSPC

    31162809
    Produkthinweise

    Anmerkung 1

    Leistungsdaten stellen keine Garantie dar, sondern liefern Hilfe für eigene Tests und Auswertungen für spezielle Anwendungen.

    Prop 65

    WARNING This product can expose you to chemicals including Soots and Nickel (metallic), known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
