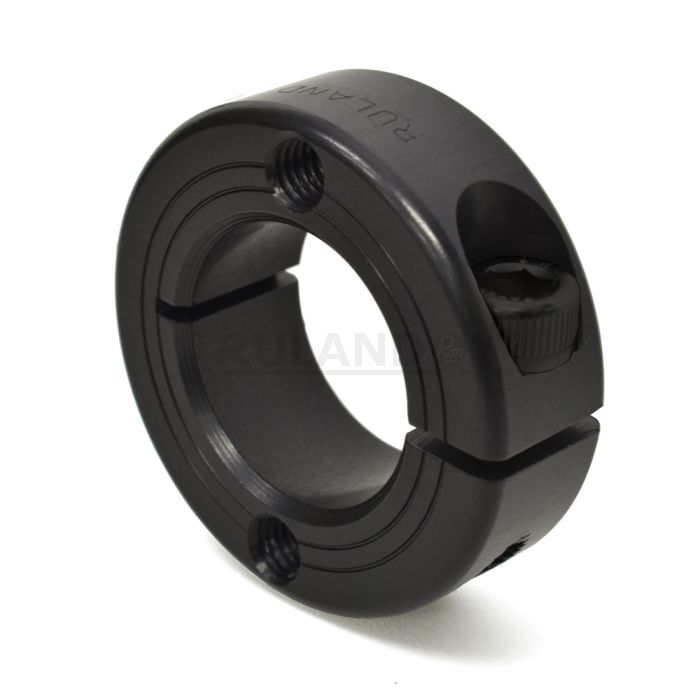

    main product photo

    FHT-MCL-12-F

    17,21 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 17,21 €
    20 15,65 €
    100 11,68 €
    250 7,01 €
    500 Angebot anfordern
    In Production Lead Time: 1 Week or Less
    Ruland FHT-MCL-12-F, 12mm Face Mount Shaft Collar with Tapped Hole, Black Oxide Steel, One-Piece Clamp Style, 28mm OD, 11mm Width

    Ähnliche Produkte

    PRODUKTSPEZIFIKATIONEN

    Ruland FHT-MCL-12-F is a one-piece shaft collar with a 12mm bore, 28mm OD, and 11mm width. FHT-MCL-12-F has tapped holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Tapped holes allow for a secure connection between the shaft collar and mated component. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. FHT-MCL-12-F is stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. FHT-MCL-12-F is machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses 1215 lead-free steel with a proprietary black oxide finish that produces a fine glossy finish while increasing holding power and resisting corrosion. It is RoHS3 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Bohrung (B1)

    12 mm

    Bohrungstoleranz

    +0,050 mm / +0,012 mm

    Außendurchmesser (OD)

    28 mm

    Platzbedarf C MAX

    32,0 mm

    Breite (W)

    11 mm

    Breitentoleranz

    +0,076 mm / -0,254 mm

    Hole to Center

    10,00 mm

    Hole to Hole

    20,00 mm

    Gewindebohrung für Befestigung

    M4

    Empfohlene Wellentoleranz

    +0,000 mm / -0,013 mm
    Befestigungsschraube

    Innensechskantschraube

    M4 x 12

    Schraubenwerkstoff

    Legierter Stahl

    Größe Sechskantschlüssel

    3,0 mm

    Schraubenoberfläche

    Brüniert

    Anzugsmoment

    4,6 Nm

    Schraubenposition (R)

    10,01 mm

    Anzahl der Schrauben

    je 1
    Recommended Installation Tools

    Recommended Torque Wrench

    TW:BT-1R-1/4-41.0

    Recommended Hex Key

    Metric Hex Keys
    zusätzliche Information

    Materialspezifikation

    1215 Automatenstahl Stangenmaterial

    Temperaturbereich

    -40°C bis 176°C

    Spezifikation Oberflächenbehandlung

    Heißbrünierung, Imprägnierung mit Naphtenöl und zentrifugal getrocknet

    Hersteller

    Ruland Manufacturing

    Herkunftsland

    USA

    Gewicht (kg)

    0.084705

    UPC

    63452937759

    Tariff Code

    8483.60.8000

    UNSPC

    31162811
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
