    main product photo

    Conveyor Rail Mounting Kit, MT12-2W-CONV-LV-200

    204,69 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 204,69 €
    10 188,32 €
    25 170,51 €
    50 153,52 €
    100 Angebot anfordern
    Out of Stock Lead Time: 2 Weeks or Less
    Ruland MT12-2W-CONV-LV-200, Conveyor Mount Assembly, 200mm Vertical Tube, 17mm (0.67") Channel Width

    PRODUKTSPEZIFIKATIONEN

    MT12-2W-CONV-LV-200 is a pre-designed conveyor mounting system for mounting guide rails in conveyor applications. The system consists of a flanged bolt base that mounts to the side of the conveyor, a 200mm long round tube, a two-way connector, and an 85mm stainless steel rod with the conveyor clamp on the end. The clamping handles allow users to easily adjust the height and depth of the conveyor rails without tools, increasing efficiency when the material being inspected changes size or shape. The conveyor clamps have a channel width of 17mm (0.67"), which fit most standard conveyor rails. All of these parts combine to make a highly customizable system that is easy to assemble, install, move, and adjust. Ruland ships MT12-2W-CONV-LV-200 assembled to reduce installation time. All parts in this conveyor mounting system are manufactured by JW Winco and stocked in our Marlborough, MA location.

    PRODUKTSPEZIFIKATIONEN

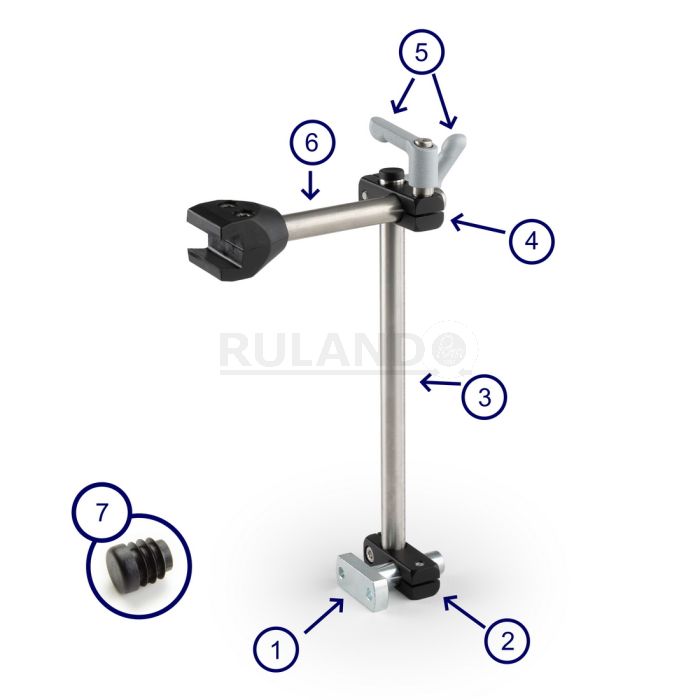

    Bill Of Materials (BOM) Items

    MMKit BOM Item 1

    Flanged Bolt Base MT12

    MMKit BOM Item 2

    Two-Way Connector MT12

    MMKit BOM Item 3

    MT12 200mm Tube No Scale

    MMKit BOM Item 4

    Two-Way Connector Clamp MT12

    MMKit BOM Item 5

    Stud Thread M5 Zinc Lever

    MMKit BOM Item 6

    MT12 Conveyor Rail Guide

    MMKit BOM Item 7

    Round Tube Cap MT12
    Abmessungen

    MMKit Assembled Height

    9.070 in

    MMKit Assembled Tube Height

    7.87 in

    MMKit Assembled Tube Length

    7.87 in

    MMKit Assembled Tube Diameter

    12mm

    MMKit Assembled Screw Threads

    M5

    MMKit Assembled Handle Thread

    M5

    MMKit Assembled Conveyor Channel Width

    0.670 in
    zusätzliche Information

    Hersteller

    JW Winco/ Otto Ganter

    UPC

    63452941502

    Herkunftsland

    Deutschland

    UNSPC

    24101728

    Tariff Code

    7609.00.0000
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.
