    ATCL-14-6-F

    16,41 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 16,41 €
    20 14,91 €
    100 12,43 €
    200 11,18 €
    500 Angebot anfordern
    Auf Lager
    Registered users receive a 5% discount

    Ruland ATCL-14-6-F, 7/8" - 6 TPI Acme Threaded Shaft Collar, Black Oxide Steel, One-Piece Clamp Style, 1 5/8" OD, 0.500" Width

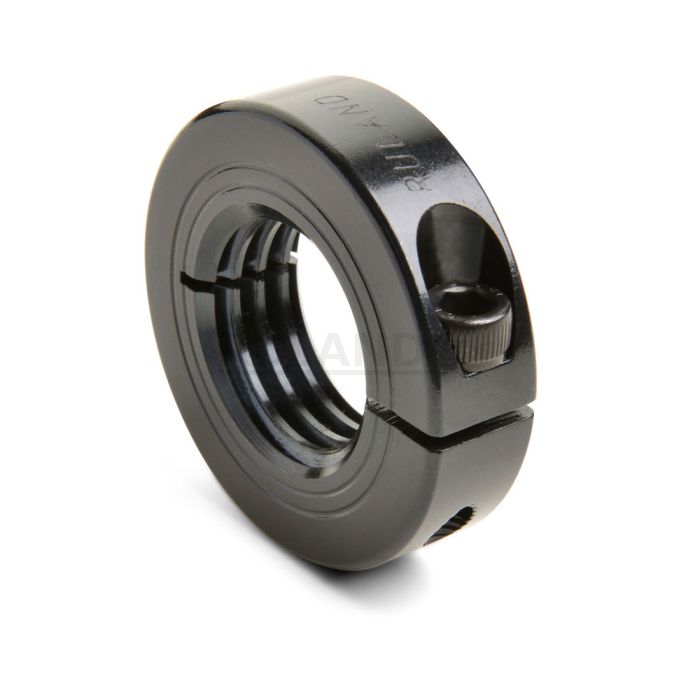

    main product photo

    PRODUKTSPEZIFIKATIONEN

    Ruland ATCL-14-6-F is an acme threaded one-piece shaft collar with a 7/8" - 6 TPI bore, 1 5/8" OD, and 0.500" width. ATCL-14-6-F has higher axial holding power than round bore shaft collars of similar size. Ruland double taps threads to ensure a precise and burr-free finish allowing for easy installation and removal, proper fit, and extended shaft life. The clamp style design will not mar the shaft. ATCL-14-6-F is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .002"). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. ATCL-14-6-F is stamped with the Ruland name and bore size for ease of identification. Forged screws test beyond ANSI standards to ensure maximum holding power. It is manufactured from solid bar stock sourced from select North American mills and machined to a fine burr free finish. Ruland uses 1215 lead-free steel with a proprietary black oxide finish that produces a fine glossy finish while increasing holding power and resisting corrosion. ATCL-14-6-F is RoHS3 and REACH compliant and manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

    PRODUKTSPEZIFIKATIONEN

    Abmessungen

    Gewindebohrung (B1)

    7/8 zoll - 6 TPI

    Thread Class

    2G

    Außendurchmesser (OD)

    1 5/8 zoll

    Breite (W)

    0,500 zoll

    Platzbedarf C MAX

    1,916 zoll

    Breitentoleranz

    +0,003 zoll/ -0,010 zoll

    Empfohlene Wellentoleranz

    +0,0000 zoll / -0,0005 zoll
    Befestigungsschraube

    Innensechskantschraube

    1/4-28

    Schraubenwerkstoff

    Legierter Stahl

    Größe Sechskantschlüssel

    3/16 zoll

    Schraubenoberfläche

    Brüniert

    Anzugsmoment

    170 lb-zoll

    Schraubenposition (R)

    0,545 zoll

    Anzahl der Schrauben

    je 1
    Recommended Installation Tools

    Recommended Torque Wrench

    TW:BT-4C-3/8-165

    Recommended Hex Key

    Inch Hex Keys
    zusätzliche Information

    Materialspezifikation

    1215 Automatenstahl Stangenmaterial

    Temperaturbereich

    -40°C bis 176°C

    Spezifikation Oberflächenbehandlung

    Heißbrünierung, Imprägnierung mit Naphtenöl und zentrifugal getrocknet

    Hersteller

    Ruland Manufacturing

    Herkunftsland

    USA

    Gewicht (kg)

    0.202300

    UPC

    63452928731

    Tariff Code

    8483.60.8000

    UNSPC

    31162811
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.

    Prop 65

    WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    Installationsanleitung

    1. Use the ATCL-14-6-F acme threaded shaft collar as it is received.
    2. Wipe the bore clean.
    3. Apply a thin coat of light oil to the shaft.
    4. Place the collar onto the desired shaft location and tighten it using a 3/16 in hex wrench until a slight resistance is felt.
    5. Wring collar into its final position and tighten the screw to the full recommended seating torque of 170 lb-in using a 3/16 in torque wrench.
