    main product photo

    90 Degree Sensor Mount Kit, MT15-2W-90-LV-100-100-BRKT-M12

    258,80 €
    Artikeldetails Datenblatt
    Merken
    Email
    Menge Preis (USD)
    1 258,80 €
    10 238,10 €
    25 215,58 €
    50 194,10 €
    100 Angebot anfordern
    Out of Stock Lead Time: 2 Weeks or Less
    Ruland MT15-2W-90-LV-100-100-BRKT-M12, 90-Degree Sensor Mount Assembly, 100mm x 100mm Tubes, 12mm Sensor Bracket

    PRODUKTSPEZIFIKATIONEN

    MT15-2W-90-LV-100-100-BRKT-M12 is a predesigned 90-degree sensor mounting system that mounts round sensors with a 12mm outer diameter to conveyors or other material handling components. The system consists of a two-way mounting base, a 100mm long round vertical tube, a 100mm long round horizontal tube, tube caps, clamping handles, an 90-degree two-way connector, a bracket clamp, and a sensor bracket. The clamping handles allow users to easily adjust the position of the tubes without tools, increasing efficiency when the material being inspected changes size or shape. The 90-degree connector ensures the tubes stay in a fixed position. All of these parts combine to make a highly customizable system that is easy to assemble, install, move, and adjust. Ruland ships MT15-2W-90-LV-100-100-BRKT-M12 assembled to reduce installation time. All parts in this sensor mounting system are manufactured by JW Winco and stocked in our Marlborough, MA location

    PRODUKTSPEZIFIKATIONEN

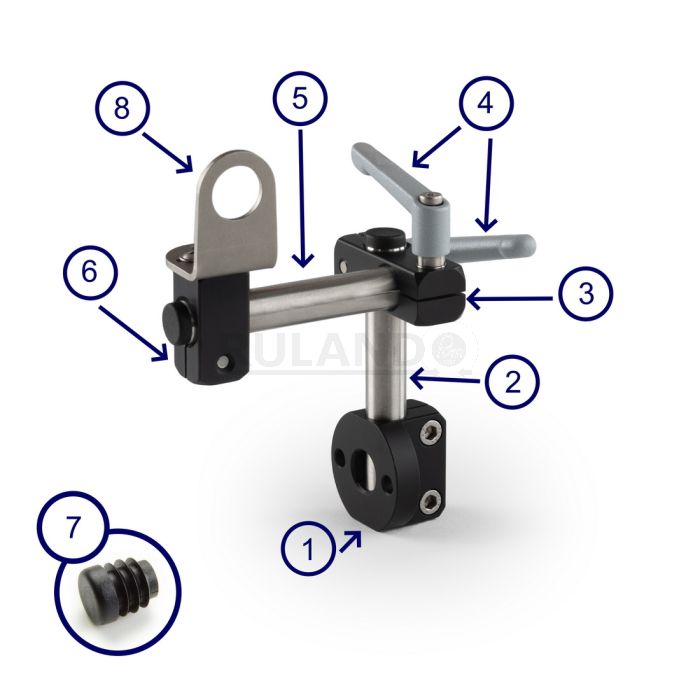

    Bill Of Materials (BOM) Items

    MMKit BOM Item 1

    2-Way Mounting Base MT15

    MMKit BOM Item 2

    MT15 100mm Tube No Scale

    MMKit BOM Item 3

    Two-Way Connector Clamp MT15

    MMKit BOM Item 4

    Stud Thread M6 Zinc Lever

    MMKit BOM Item 5

    MT15 100mm Tube No Scale

    MMKit BOM Item 6

    MT15 Bracket Clamp

    MMKit BOM Item 7

    Round Tube Cap MT15

    MMKit BOM Item 8

    Sensor Bracket M12
    Abmessungen

    MMKit Assembled Height

    5.713 in

    MMKit Assembled Tube Height

    3.94 in

    MMKit Assembled Tube Length

    3.94 in

    MMKit Assembled Tube Diameter

    15mm

    MMKit Assembled Screw Threads

    M6

    MMKit Assembled Handle Thread

    M6
    zusätzliche Information

    Hersteller

    JW Winco/ Otto Ganter

    UPC

    63452941507

    Herkunftsland

    Deutschland

    Tariff Code

    7609.00.0000

    UNSPC

    24101728
    Produkthinweise

    Anmerkung 1

    Performance ratings are for guidance only. The user must determine suitability for a particular application.
