OCC16-8-A
$36.26
ea

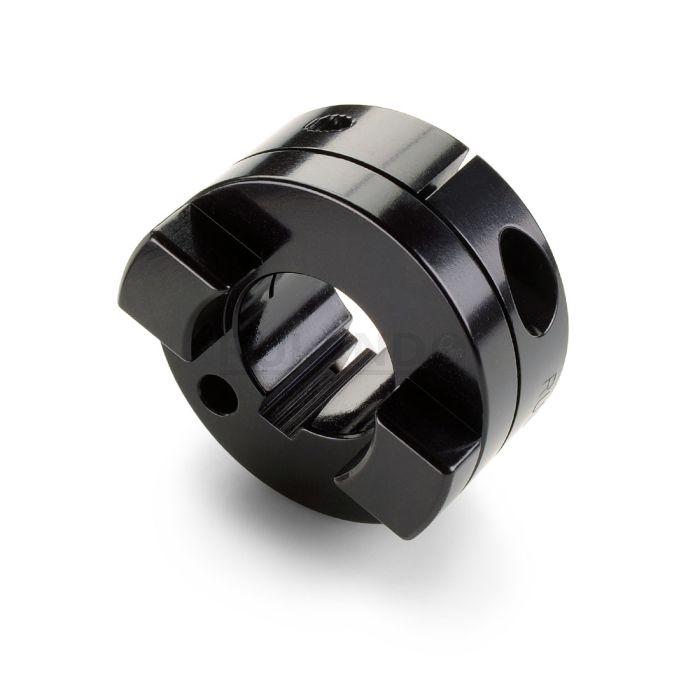

Ruland OCC16-8-A, 1/2" Oldham Coupling Hub, Aluminum, Clamp Style With Keyway, 1.000" OD, 0.467" Length
PRODUCT SPECIFICATIONS
Ruland OCC16-8-A is an oldham coupling hub with 1/2" bore, 1/8" keyway, 1.000" OD, and 0.467" length. It is a component of a three-piece design consisiting of two anodized aluminum hubs press fit onto a center disk. This three-piece design allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. Disks are available in acetal plastic for zero-backlash and high torsional stiffness, nylon for shock absorption and dampening, and PEEK for high temperature and cleanroom environments. OCC16-8-A can accommodate all forms of misalignment and are especially useful in applications with high parallel misalignment (up to 10% of the OD). It operates with low bearing loads protecting sensitive system components such as bearings and has a balanced design for reduced vibration at speeds up to 6,000 RPM. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. OCC16-8-A is machined from bar stock that is sourced exclusively from North American mills and is RoHS2 and REACH compliant. It is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.
PRODUCT SPECIFICATIONS
| Dimensions | |||
|---|---|---|---|
Bore B |
0.500 in |
Bore Tolerance |
+.001 in / -.000 in |
B1 Shaft Penetration |
0.467 in |
Keyway K |
1/8 in |
Outer Diameter OD |
1.000 in |
Length L |
1.250 in |
Hub Width LH |
0.467 in |
||
| Fastening Hardware | |||
Forged Clamp Screw |
M3 |
Number of Screws |
1 ea |
Screw Material |
Alloy Steel |
Screw Finish |
Black Oxide |
Seating Torque |
2.1 Nm |
Hex Wrench Size |
2.5 mm |
| Performance Specifications | |||
Angular Misalignment |
0.5° |
Parallel Misalignment |
0.008 in, 0.20 mm |
Maximum Parallel Misalignment |
0.100 in, 2.54 mm |
Axial Motion |
0.004 in, 0.10 mm |
Maximum Speed |
4,500 RPM |
||
| Additional Information | |||
UPC |
63452911855 |
Country of Origin |
USA |
Material Specification |
2024-T351 Aluminum Bar |
Finish |
Black Anodized |
Finish Specification |
Sulfuric Anodized MIL-A-8625 Type II, Class 2 and ASTM B580 Type B Black Anodize |
Manufacturer |
Ruland Manufacturing |
Temperature |
Acetal Disk -10°F to 150°F |
Weight (lbs.) |
0.0800 |
| Product Notes | |||
Note 1 |
Stainless steel hubs are available upon request. |
Note 2 |
Performance ratings are for guidance only. The user must determine suitability for a particular application. |
Note 3 |
Torque ratings for the couplings are based on the physical limitations/failure point of the torque disks. Under normal/typical conditions the hubs are capable of holding up to the rated torque of the disks. Please consult technical support for more assistance. |
Prop 65 |
|
WARNING This product can expose you to the chemical Ethylene Thiourea, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
