MCLX-12-12-A

$61.67 ea
Quantity Price (USD)
1 $61.67 ea
10 $37.00 ea
40 $30.84 ea
100 $27.75 ea
250 Request Quote
In stock
Registered users receive a 5% discount

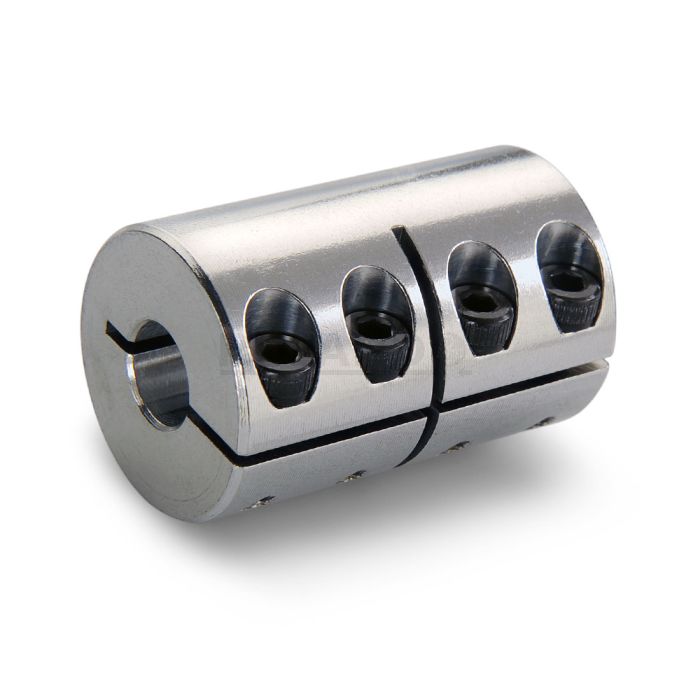

Ruland MCLX-12-12-A, 12mm x 12mm Rigid Coupling, Aluminum, One-Piece Clamp Style, 29mm OD, 45mm Length

PRODUCT SPECIFICATIONS

Ruland MCLX-12-12-A is a one-piece rigid coupling with 12mm x 12mm bores, x keyways, 29mm OD, and 45mm length. It has precision honed bores on to ensure bores are collinear and does not introduce misalignment or vibration into the system making it suitable for high precision servo appliactions as well as shaft to shaft connections. Proprietary Nypatch® anti-vibration coating on hardware allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. It eliminates the need to treat screws upon receipt greatly reducing installation time. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. Tightly controlled bore tolerance of +.050mm/+.012mm is maintained. MCLX-12-12-A is made high grade 2024 aluminum for lightweight and increased screw seating torque. It is machined from solid bar stock that is sourced exclusively from North American mills and is RoHS2 and REACH compliant. MCLX-12-12-A is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

PRODUCT SPECIFICATIONS

Dimensions

Large Bore B1

12 mm

Small Bore B2

12 mm

B1 Shaft Penetration

22.5 mm

B2 Shaft Penetration

22.5 mm

Outer Diameter OD

29 mm

Bore Tolerance

+.050 mm / +.012 mm

Length L

45 mm

Clearance Diameter C MAX

33.0 mm

Fastening Hardware

Forged Clamp Screw

M4

Screw Material

Alloy Steel with Nypatch®

Hex Wrench Size

3.0 mm

Screw Finish

Black Oxide

Seating Torque

4.6 Nm

Screw Location R

10.6 mm

Number of Screws

4 ea

Performance Specifications

Torque

95 Nm

Maximum Speed

4,000 RPM

Additional Information

Material Specification

2024-T351 Aluminum Bar

Temperature

-40°F to 225°F
-40°C to 107°C

Finish Specification

Bright

Manufacturer

Ruland Manufacturing

Country of Origin

USA

Weight (lbs.)

0.1500

UPC

63452901366

Product Notes

Note 1

Performance ratings are for guidance only. The user must determine suitability for a particular application.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
