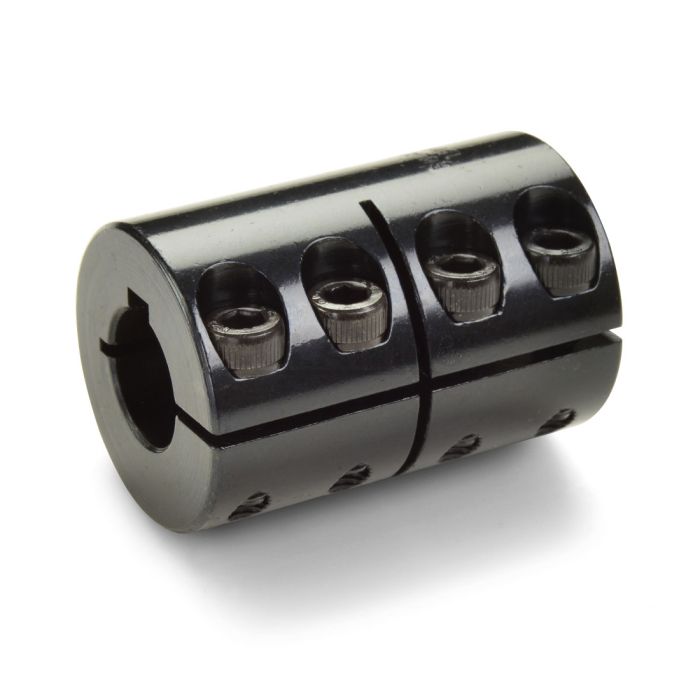

Ruland MCLC-14-14-F, 14mm x 14mm Rigid Coupling, Black Oxide Steel, One-Piece Clamp Style with Keyway, 34mm OD, 50mm Length

PRODUCT SPECIFICATIONS

Ruland MCLC-14-14-F is a one-piece rigid coupling with 14mm x 14mm bores, 5mm x 5mm keyways, 34mm OD, and 50mm length. It has precision honed bores on to ensure bores are collinear and does not introduce misalignment or vibration into the system making it suitable for high precision servo appliactions as well as shaft to shaft connections. Proprietary Nypatch® anti-vibration coating on hardware allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power. It eliminates the need to treat screws upon receipt greatly reducing installation time. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power. Tightly controlled bore tolerance of +.050mm/+.012mm is maintained. MCLC-14-14-F is made from 1215 lead-free steel with a proprietary black oxide finish that produces a fine glossy finish while increasing holding power and resisting corrosion. It is machined from solid bar stock that is sourced exclusively from North American mills and is RoHS2 and REACH compliant. MCLC-14-14-F is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

Installation Instructions

DownLoad

PRODUCT SPECIFICATIONS

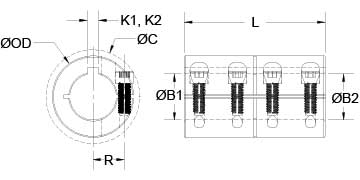

Dimensions

Large Bore B1

14 mm

Small Bore B2

14 mm

Keyway K

5 mm

Keyway K2

5 mm

B1 Shaft Penetration

25.0 mm

B2 Shaft Penetration

25.0 mm

Outer Diameter OD

34 mm

Bore Tolerance

+.050 mm / +.012 mm

Length L

50 mm

Clearance Diameter C MAX

39.4 mm

Fastening Hardware

Forged Clamp Screw

M5

Screw Material

Alloy Steel with Nypatch®

Hex Wrench Size

4.0 mm

Screw Finish

Black Oxide

Seating Torque

9.5 Nm

Screw Location R

12.0 mm

Number of Screws

4 ea

Performance Specifications

Torque

200 Nm

Maximum Speed

4,000 RPM

Additional Information

Material Specification

1215 Carbon Steel Bar

Temperature

-40°F to 350°F
-40°C to 176°C

Finish Specification

Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried

Country of Origin

USA

Weight (lbs.)

0.6500

UPC

63452901300
