JC12-3-A

$23.56 ea
Quantity Price (USD)
1 $23.56 ea
20 $14.14 ea
50 $11.78 ea
100 $10.60 ea
200 Request Quote
In stock
Registered users receive a 5% discount

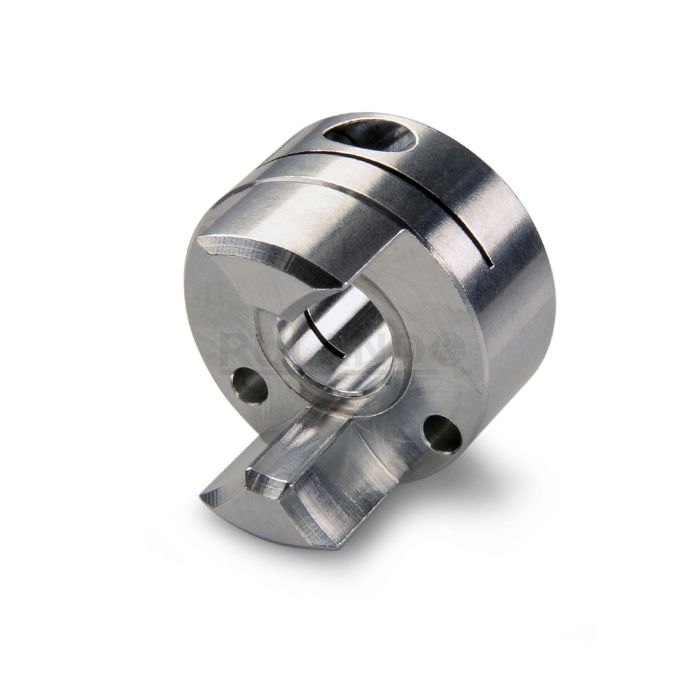

Ruland JC12-3-A, 3/16" Jaw Coupling Hub, Aluminum, Clamp Style, 0.750" OD, 0.385" Length

PRODUCT SPECIFICATIONS

Ruland JC12-3-A is a zero-backlash jaw coupling hub with a 3/16" bore, 0.750" OD, and 0.385" length. It is a component in a three-piece design consisiting of two aluminum hubs and an elastomeric insert called the spider creating a lightweight low inertia coupling capable of speeds up to 8,000 RPM. This three-piece design allows for a highly customizable coupling that easily combines clamp or set screw hubs with inch, metric, keyed, and keyless bores. Spiders are available in three durometers allowing the user to tailor the performance of the coupling to their application. Ruland jaw couplings have a balanced design for reduced vibration at high speeds. Hardware is metric and tests beyond DIN 912 12.9 standards for maximum torque capabilities. JC12-3-A is machined from bar stock that is sourced exclusively from North American mills and is RoHS2 and REACH compliant. It is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.

PRODUCT SPECIFICATIONS

Dimensions

Bore B

0.188 in

B1 Shaft Penetration

0.385 in

Outer Diameter OD

0.750 in

Bore Tolerance

+.001 in / -.000 in

Hub Width LH

0.385 in

Length L

1.070 in

Fastening Hardware

Forged Clamp Screw

M2.5

Number of Screws

1 ea

Screw Material

Alloy Steel

Screw Finish

Black Oxide

Hex Wrench Size

2.0 mm

Seating Torque

1.21 Nm

Performance Specifications

Maximum Speed

8,000 RPM

Additional Information

Weight (lbs.)

0.0170

Temperature

-10°F to 180°F
-23°C to 82°C

Material Specification

2024-T351 Aluminum Bar

Finish

Bright

Finish Specification

Bright

Manufacturer

Ruland Manufacturing

UPC

63452906833

Country of Origin

USA

Product Notes

Note 1

Stainless steel hubs are available upon request.

Note 2

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Note 3

Torque ratings for the couplings are based on the physical limitations/failure point of the spiders. Under normal/typical conditions the hubs are capable of holding up to the nominal torque of the spiders. In some cases, especially when the smallest standard bores are used or where shafts are undersized, slippage on the shaft is possible below the nominal torque of the spiders. Keyways are available to provide additional torque capacity in the shaft/hub connection when required. Please consult technical support for more assistance.

CERTIFICATIONS/STANDARDS
ISO 9001:2015

Certified

Conflict Minerals

Compliant

RoHS3

Compliant

REACH

Compliant
